一、线程模型

Netty线程模型这个博客写不错；

二、NioEventLoopGroup线程池分析

1.NioEventLoopGroup的类图结构

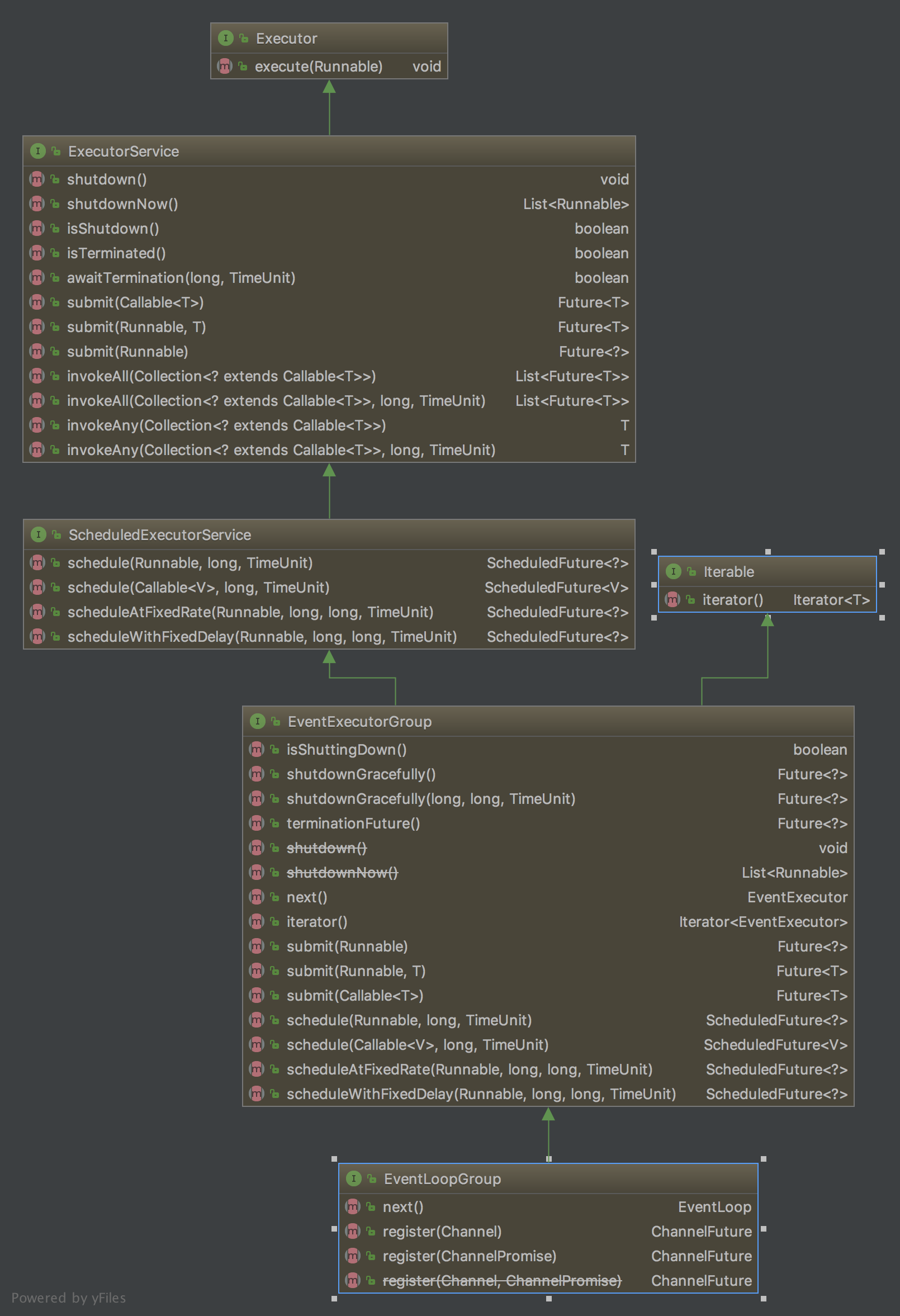

2.EventLoopGroup接口图

next()属于分配EventLoop
register注册Channel
shutdownGracefully优雅关机

1.AbstractEventExecutorGroup 抽象类源码

execute,submit和schedule调用next()执行，最终调用EventExecutor类实现

2.MultithreadEventExecutorGroup 抽象类源码

(1).数据结构

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11


public abstract class MultithreadEventExecutorGroup extends AbstractEventExecutorGroup {
    //线程池
    private final EventExecutor[] children;
    //不可以更改线程池，只能可读效果；
    private final Set<EventExecutor> readonlyChildren;
    //终止线程数量
    private final AtomicInteger terminatedChildren = new AtomicInteger();
    private final Promise<?> terminationFuture = new DefaultPromise(GlobalEventExecutor.INSTANCE);
    //EventExecutor选择器
    private final EventExecutorChooserFactory.EventExecutorChooser chooser;
}

(2).构造

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43


    protected MultithreadEventExecutorGroup(int nThreads, Executor executor,
                                            EventExecutorChooserFactory chooserFactory, Object... args) {
       ...
        // 线程执行器,ThreadFactory执行任务
        if (executor == null) {
            //threadFactory.newThread(command).start();
            executor = new ThreadPerTaskExecutor(newDefaultThreadFactory());
        }
        // 创建线程池数组
        // 调用newChild抽象方法，创建EventExecutor
        children = new EventExecutor[nThreads];//
        for (int i = 0; i < nThreads; i ++) {
            boolean success = false;
            try {
                children[i] = newChild(executor, args); //抽象方法，子类实现；
                success = true;
            } catch (Exception e) {
                throw new IllegalStateException(...);
            } finally {
                if (!success) {
                    //创建线程池失败，优雅关机终止
                    for (int j = 0; j < i; j ++) {
                        children[j].shutdownGracefully();
                    }
                    // awaitTermination等待终止，是同步方法
                    for (int j = 0; j < i; j ++) {
                        EventExecutor e = children[j];
                        try {
                            while (!e.isTerminated()) {
                                e.awaitTermination(Integer.MAX_VALUE, TimeUnit.SECONDS);
                            }
                        } catch...
                    }
                }
            }
        }
        // 创建EventExecutor的选择器
        chooser = chooserFactory.newChooser(children);
        ...
        Set<EventExecutor> childrenSet = new LinkedHashSet<EventExecutor>(children.length);
        Collections.addAll(childrenSet, children);
        readonlyChildren = Collections.unmodifiableSet(childrenSet);//把Set改成不可改变Set
    }

a.chooserFactory.newChooser 创建EventExecutor线程选择器

chooserFactory默认 DefaultEventExecutorChooserFactory

b.DefaultEventExecutorChooserFactory 源码分析

EventExecutor数量是2次方幂，就创建PowerOfTwoEventExecutorChooser，否GenericEventExecutorChooser
PowerOfTwoEventExecutorChooser和GenericEventExecutorChooser区别在于’&‘比’%‘性能高

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42


public final class DefaultEventExecutorChooserFactory implements EventExecutorChooserFactory {

    public static final DefaultEventExecutorChooserFactory INSTANCE = new DefaultEventExecutorChooserFactory();

    private DefaultEventExecutorChooserFactory() { }

    //获取EventExecutorChooser线程选择器
    @SuppressWarnings("unchecked")
    @Override
    public EventExecutorChooser newChooser(EventExecutor[] executors) {
        //判断是否2次方幂用意？
        //executors的长度是2次方幂，快速定位executors数组下标，idx&executors.length-1
        //不是2次方幂，idx % executors.length定位数组下标
        if (isPowerOfTwo(executors.length)) {
            return new PowerOfTwoEventExecutorChooser(executors);
        } else {
            return new GenericEventExecutorChooser(executors);
        }
    }

    //判断是否2次方幂
    private static boolean isPowerOfTwo(int val) {
        return (val & -val) == val;
    }

    private static final class PowerOfTwoEventExecutorChooser implements EventExecutorChooser {
        ...
        @Override
        public EventExecutor next() {
            return executors[idx.getAndIncrement() & executors.length - 1];
        }
    }

    private static final class GenericEventExecutorChooser implements EventExecutorChooser {
        ...
        @Override
        public EventExecutor next() {
            return executors[Math.abs(idx.getAndIncrement() % executors.length)];
        }
    }
}

(3).next 获取EventExecutor线程对象

调用EventExecutorChooser算法分配EventExecutor

1
2
3
4


   @Override
    public EventExecutor next() {
        return chooser.next();
    }

(4).shutdownGracefully 循环调用EventExecutor#shutdownGracefully

1
2
3
4
5
6
7


   @Override
   public Future<?> shutdownGracefully(long quietPeriod, long timeout, TimeUnit unit) {
       for (EventExecutor l: children) {
           l.shutdownGracefully(quietPeriod, timeout, unit);
       }
       return terminationFuture();
   }

3.MultithreadEventLoopGroup

(1).next() 分配EventLoop

EventLoop继承EventExecutor，这里可以强制转化

1
2
3
4


 @Override
 public EventLoop next() {
     return (EventLoop) super.next();
 }

(2).register 注册channel,EventLoop执行；

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15


   @Override
    public ChannelFuture register(Channel channel) {
        return next().register(channel);
    }

    @Override
    public ChannelFuture register(ChannelPromise promise) {
        return next().register(promise);
    }

    @Deprecated
    @Override
    public ChannelFuture register(Channel channel, ChannelPromise promise) {
        return next().register(channel, promise);
    }

(2)newDefaultThreadFactory,创建DefaultThreadFactory

最终创建FastThreadLocalThread线程

1
2
3
4


  @Override
    protected ThreadFactory newDefaultThreadFactory() {
        return new DefaultThreadFactory(getClass(), Thread.MAX_PRIORITY);
    }

4.NioEventLoopGroup 源码分析

NioEventLoopGroup实现MultithreadEventExecutorGroup抽象类；

(1).构造

1
2
3
4
5
6
7


    public NioEventLoopGroup(int nThreads, Executor executor, EventExecutorChooserFactory chooserFactory,
                             final SelectorProvider selectorProvider, //
                             final SelectStrategyFactory selectStrategyFactory,
                             final RejectedExecutionHandler rejectedExecutionHandler) {
        super(nThreads, executor, chooserFactory, selectorProvider, selectStrategyFactory, rejectedExecutionHandler);
    }

(2).newChild 创建NioEventLoop

1
2
3
4
5


   @Override
    protected EventLoop newChild(Executor executor, Object... args) throws Exception {
        return new NioEventLoop(this, executor, (SelectorProvider) args[0],
            ((SelectStrategyFactory) args[1]).newSelectStrategy(), (RejectedExecutionHandler) args[2]);
    }

二、NioEventLoop分析

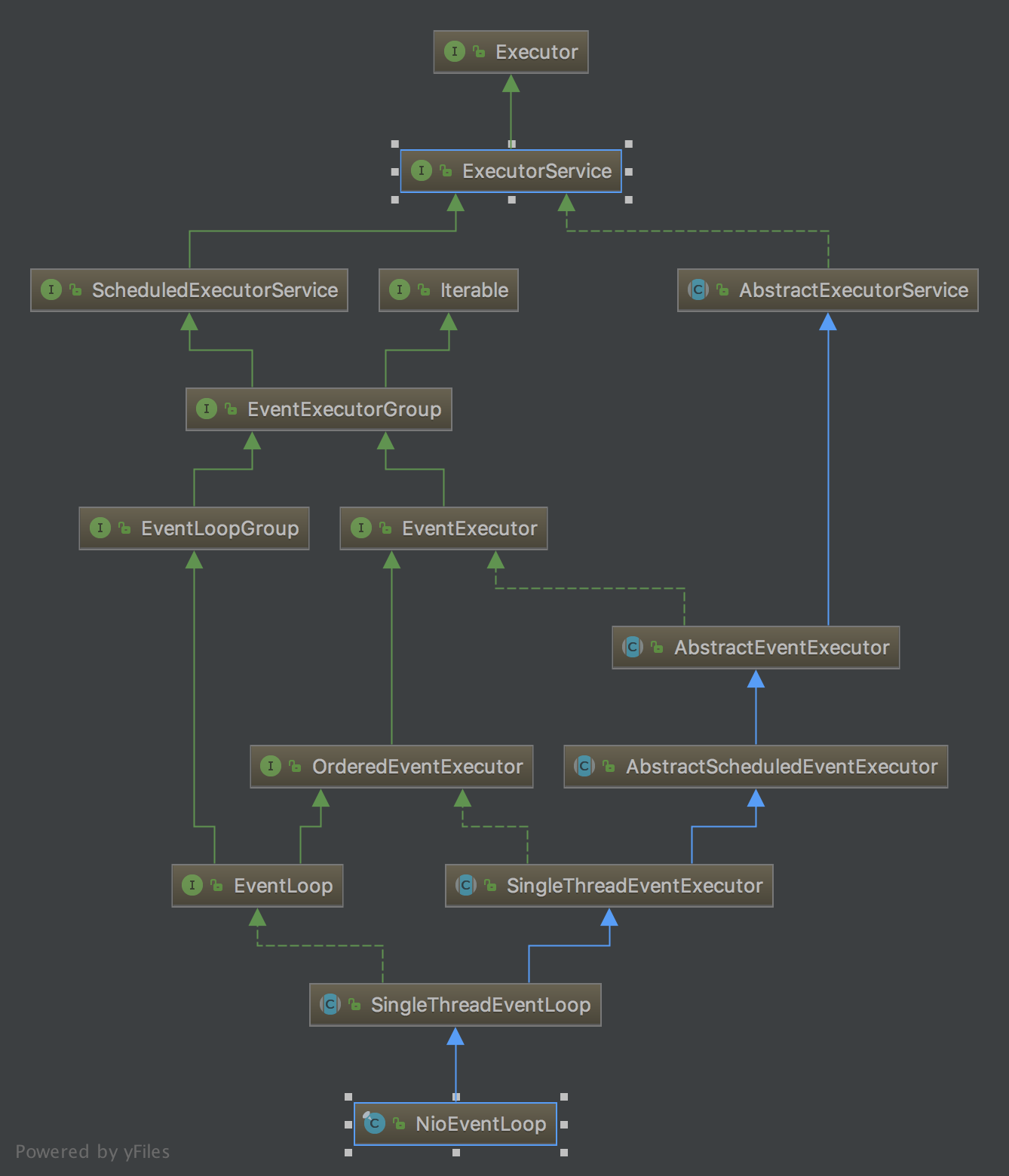

1.NioEventLoop的实现类图结构

2.EventLoop接口类图

OrderedEventExecutor 标记状态，将以有序/串行方式处理所有提交的任务。

3.AbstractEventExecutor源码分析

(1).数据结构

1
2
3
4
5
6
7
8
9


public abstract class AbstractEventExecutor extends AbstractExecutorService implements EventExecutor {

    static final long DEFAULT_SHUTDOWN_QUIET_PERIOD = 2;
    static final long DEFAULT_SHUTDOWN_TIMEOUT = 15;
    //所属EventExecutorGroup
    private final EventExecutorGroup parent;
    //单元素集合
    private final Collection<EventExecutor> selfCollection = Collections.<EventExecutor>singleton(this);
}

(2).next() 指定当前EventExecutor

1
2
3
4


    @Override
    public EventExecutor next() {
        return this;
    }

(3).shutdownGracefully()

1
2
3
4
5


  @Override
     public Future<?> shutdownGracefully() {
         //设置默认时间
         return shutdownGracefully(DEFAULT_SHUTDOWN_QUIET_PERIOD, DEFAULT_SHUTDOWN_TIMEOUT, TimeUnit.SECONDS);
     }

(4).pollScheduledTask 获取调度任务

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15


   protected final Runnable pollScheduledTask(long nanoTime) {
       assert inEventLoop();

       Queue<ScheduledFutureTask<?>> scheduledTaskQueue = this.scheduledTaskQueue;
       ScheduledFutureTask<?> scheduledTask = scheduledTaskQueue == null ? null : scheduledTaskQueue.peek();
       if (scheduledTask == null) {
           return null;
       }

       if (scheduledTask.deadlineNanos() <= nanoTime) {
           scheduledTaskQueue.remove();
           return scheduledTask;
       }
       return null;
   }

(5).cancelScheduledTasks 取消调度任务

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16


   protected void cancelScheduledTasks() {
       assert inEventLoop();
       PriorityQueue<ScheduledFutureTask<?>> scheduledTaskQueue = this.scheduledTaskQueue;
       if (isNullOrEmpty(scheduledTaskQueue)) {
           return;
       }

       final ScheduledFutureTask<?>[] scheduledTasks =
               scheduledTaskQueue.toArray(new ScheduledFutureTask<?>[scheduledTaskQueue.size()]);

       for (ScheduledFutureTask<?> task: scheduledTasks) {
           task.cancelWithoutRemove(false);
       }

       scheduledTaskQueue.clearIgnoringIndexes();
   }

4.AbstractScheduledEventExecutor支持调度的的抽象基类

(1).数据结构，创建PriorityQueue(优先队列)，利用优先队列，支持调度

1
2
3
4
5


public abstract class AbstractScheduledEventExecutor extends AbstractEventExecutor {
    ...
    //优先级队列
    PriorityQueue<ScheduledFutureTask<?>> scheduledTaskQueue;
    }

(2).优先级队列任务实现ScheduledFutureTask

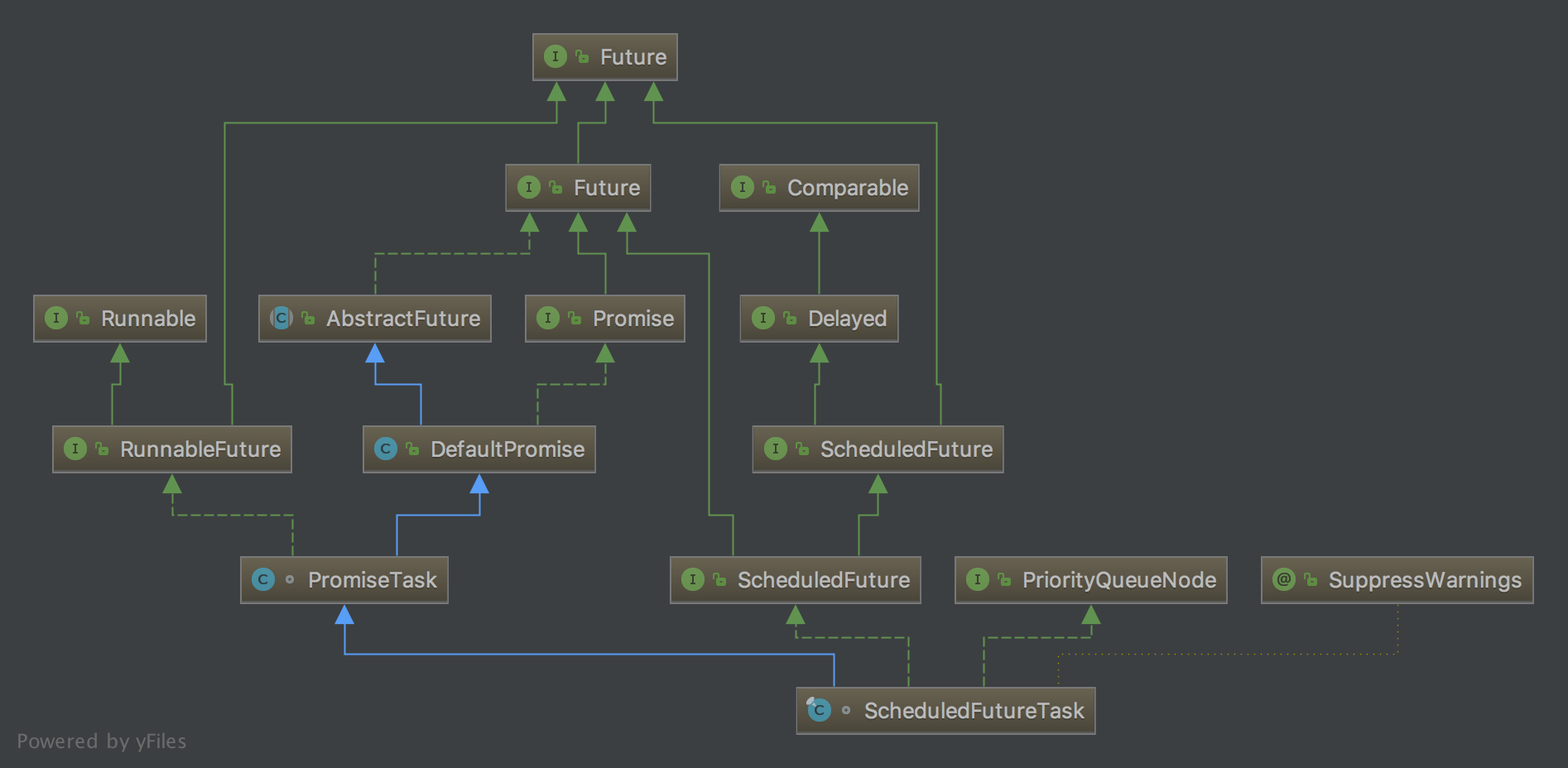

a.ScheduledFutureTask的类图

类图关系很复杂，最核心怎么实现时间调度
PromiseTask类后面去分析

b.数据结构

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13


final class ScheduledFutureTask<V> extends PromiseTask<V> implements ScheduledFuture<V>, PriorityQueueNode {
    private static final AtomicLong nextTaskId = new AtomicLong();//调度任务ID生成器
    private static final long START_TIME = System.nanoTime();
    //调度任务id
    private final long id = nextTaskId.getAndIncrement();
    //调度任务截止时间即到了改时间点任务将被执行
    private long deadlineNanos;
    /* 0 - no repeat, >0 - repeat at fixed rate, <0 - repeat with fixed delay */
    //0--表示调度任务不重复，>0--表示按固定频率重复(at fixed rate)，<0--表示按固定延迟重复(with fixed delay)。
    private final long periodNanos;

    private final int queueIndex = INDEX_NOT_IN_QUEUE;
}

c.nanoTime() 获取当前相对纳秒时间

1
2
3


   static long nanoTime() {
       return System.nanoTime() - START_TIME;
   }

d.run 核心执行方法

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33


 @Override
    public void run() {
        assert executor().inEventLoop();
        try {
            if (periodNanos == 0) { //为0情况，只执行一次
                if (setUncancellableInternal()) {
                    V result = task.call();   //执行任务
                    setSuccessInternal(result);
                }
            } else {
                // check if is done as it may was cancelled 验证是否取消
                if (!isCancelled()) {
                    task.call();
                    if (!executor().isShutdown()) {
                        long p = periodNanos;
                        if (p > 0) {
                            deadlineNanos += p; //固定频率重复
                        } else {
                            deadlineNanos = nanoTime() - p;//固定延迟重复
                        }
                        if (!isCancelled()) {
                            // scheduledTaskQueue can never be null as we lazy init it before submit the task!
                            Queue<ScheduledFutureTask<?>> scheduledTaskQueue =
                                    ((AbstractScheduledEventExecutor) executor()).scheduledTaskQueue;
                            assert scheduledTaskQueue != null;
                            //重新添加到队列中
                            scheduledTaskQueue.add(this);
                        }
                    }
                }
            }
        }...
    }

e.getDelay 获取延迟时间

 1
 2
 3
 4
 5
 6
 7
 8
 9
10


    @Override
    public long getDelay(TimeUnit unit) {
        return unit.convert(delayNanos(), TimeUnit.NANOSECONDS);
    }

    //动态变化值,nanoTime()获取当前相对纳秒时间
    public long delayNanos() {
        return Math.max(0, deadlineNanos() - nanoTime());
    }

(3).scheduledTaskQueue 获取优先级队列

实现DefaultPriorityQueue，根PriorityQueue底层设计类似，都是用堆数据结构设计；这里不做具体分析；

1
2
3
4
5
6
7
8
9


    PriorityQueue<ScheduledFutureTask<?>> scheduledTaskQueue() {
        if (scheduledTaskQueue == null) {
            scheduledTaskQueue = new DefaultPriorityQueue<ScheduledFutureTask<?>>(
                    SCHEDULED_FUTURE_TASK_COMPARATOR,
                    // Use same initial capacity as java.util.PriorityQueue
                    11);
        }
        return scheduledTaskQueue;
    }

(4).schedule

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22


   @Override
    public ScheduledFuture<?> schedule(Runnable command, long delay, TimeUnit unit) {
        ...
        if (delay < 0) {
            delay = 0;
        }
        return schedule(new ScheduledFutureTask<Void>(
                this, command, null, ScheduledFutureTask.deadlineNanos(unit.toNanos(delay))));
    }
  <V> ScheduledFuture<V> schedule(final ScheduledFutureTask<V> task) {
      if (inEventLoop()) {
          scheduledTaskQueue().add(task);
      } else {
          execute(new Runnable() {
              @Override
              public void run() {
                  scheduledTaskQueue().add(task);
              }
          });
      }
      return task;
  }

5.SingleThreadEventExecutor源码分析

一个线程中执行所有提交的任务。

(1).数据结构

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65


public abstract class SingleThreadEventExecutor extends AbstractScheduledEventExecutor implements OrderedEventExecutor {

    static final int DEFAULT_MAX_PENDING_EXECUTOR_TASKS = Math.max(16,
            SystemPropertyUtil.getInt("io.netty.eventexecutor.maxPendingTasks", Integer.MAX_VALUE));

    ...

    //state 状态
    private static final int ST_NOT_STARTED = 1; //未启动
    private static final int ST_STARTED = 2;     //启动
    private static final int ST_SHUTTING_DOWN = 3; //正在关闭
    private static final int ST_SHUTDOWN = 4;       //已关闭
    private static final int ST_TERMINATED = 5;     //终止

    private static final Runnable WAKEUP_TASK = new Runnable() {
        @Override
        public void run() {
            // Do nothing.
        }
    };
    private static final Runnable NOOP_TASK = new Runnable() {
        @Override
        public void run() {
            // Do nothing.
        }
    };

    //CAS修改state和threadProperties属性
    private static final AtomicIntegerFieldUpdater<SingleThreadEventExecutor> STATE_UPDATER =
            AtomicIntegerFieldUpdater.newUpdater(SingleThreadEventExecutor.class, "state");
    private static final AtomicReferenceFieldUpdater<SingleThreadEventExecutor, ThreadProperties> PROPERTIES_UPDATER =
            AtomicReferenceFieldUpdater.newUpdater(
                    SingleThreadEventExecutor.class, ThreadProperties.class, "threadProperties");

    //默认创建堵塞队列(LinkedBlockingQueue)
    private final Queue<Runnable> taskQueue;//队列任务

    private volatile Thread thread;         //线程
    @SuppressWarnings("unused")
    private volatile ThreadProperties threadProperties;//线程配置
    private final Executor executor;
    private volatile boolean interrupted;//中断状态

    private final Semaphore threadLock = new Semaphore(0);//信号量，来控制awaitTermination等待
    private final Set<Runnable> shutdownHooks = new LinkedHashSet<Runnable>();
    private final boolean addTaskWakesUp;   // 添加任务时是否唤醒线程
    private final int maxPendingTasks;      //队列中，未执行任务最大数量
    private final RejectedExecutionHandler rejectedExecutionHandler;//队列满来，拒绝处理

    private long lastExecutionTime;   //最后执行时间

    @SuppressWarnings({ "FieldMayBeFinal", "unused" })
    private volatile int state = ST_NOT_STARTED;   //默认状态ST_NOT_STARTED

    private volatile long gracefulShutdownQuietPeriod; //优雅的关机安静期
    private volatile long gracefulShutdownTimeout; //优雅的关闭超时
    private long gracefulShutdownStartTime;
    // 线程终止异步结果
    private final Promise<?> terminationFuture = new DefaultPromise<Void>(GlobalEventExecutor.INSTANCE);

    protected Queue<Runnable> newTaskQueue(int maxPendingTasks) {
         return new LinkedBlockingQueue<Runnable>(maxPendingTasks);
     }

}

(2).execute 添加任务，

添加任务，未启动线程，先启动线程

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21


   @Override
    public void execute(Runnable task) {
        if (task == null) {
            throw new NullPointerException("task");
        }

        boolean inEventLoop = inEventLoop();
        if (inEventLoop) {
            addTask(task);
        } else {
            startThread();//开启一个线程
            addTask(task);//添加任务
            if (isShutdown() && removeTask(task)) {
                reject();
            }
        }

        if (!addTaskWakesUp && wakesUpForTask(task)) {
            wakeup(inEventLoop);
        }
    }

1).inEventLoop 执行任务线程是否EventLoop线程

1
2
3
4
5
6
7
8
9


   @Override
    public boolean inEventLoop() {
        return inEventLoop(Thread.currentThread());
    }
    @Override
    public boolean inEventLoop(Thread thread) {
        return thread == this.thread;
    }


2).startThread 开启线程

state 状态控制启动线程,防止重复启动

状态分5种，代码如下

1
2
3
4
5


     private static final int ST_NOT_STARTED = 1; //未启动
     private static final int ST_STARTED = 2;     //启动
     private static final int ST_SHUTTING_DOWN = 3; //正在关闭
     private static final int ST_SHUTDOWN = 4;       //已关闭
     private static final int ST_TERMINATED = 5;     //终止

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12


   private void startThread() {
        if (state == ST_NOT_STARTED) {
            if (STATE_UPDATER.compareAndSet(this, ST_NOT_STARTED, ST_STARTED)) {
                try {
                    doStartThread();//正在启动一个线程
                } catch (Throwable cause) {
                    STATE_UPDATER.set(this, ST_NOT_STARTED);
                    ...
                }
            }
        }
    }

a.doStartThread 启动线程开始

executor.execute启动一个线程

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24



  private void doStartThread() {
        assert thread == null;
        executor.execute(new Runnable() {
            @Override
            public void run() {
                thread = Thread.currentThread();
                if (interrupted) {
                    thread.interrupt();
                }
                boolean success = false;
                //设置lastExecutionTime时间
                updateLastExecutionTime();
                try {
                    SingleThreadEventExecutor.this.run(); //抽象方法，子类去实现
                    success = true;
                } catch (Throwable t) {
                    ...
                } finally {
                    ...优雅退出机制介绍
                }
            }
        });
    }

(3).addTask 添加任务

添加队列满交给rejectedExecutionHandler处理
当前状态关闭或者以终止throw的RejectedExecutionException异常

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17



     protected void addTask(Runnable task) {
         if (task == null) {
             throw new NullPointerException("task");
         }
         if (!offerTask(task)) {//添加队列满，交给rejectedExecutionHandler处理
             reject(task);
         }
     }

     final boolean offerTask(Runnable task) {
         if (isShutdown()) {//关闭或者终止，throw RejectedExecutionException
             reject();
         }
         return taskQueue.offer(task);
     }


(4).runAllTasks() 运行所有任务

获取所有调度的任务,添加到队列任务中

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19


    protected boolean runAllTasks() {
        assert inEventLoop();
        boolean fetchedAll;
        boolean ranAtLeastOne = false;
        // 获取调度任务,添加到队列任务中
        do {
            fetchedAll = fetchFromScheduledTaskQueue();//fetchedAll 返回false任务队列满了，
            if (runAllTasksFrom(taskQueue)) { //执行所有任务
                ranAtLeastOne = true;
            }
        } while (!fetchedAll); //循环重新获取调度任务添加到执行任务中

        if (ranAtLeastOne) {
            lastExecutionTime = ScheduledFutureTask.nanoTime();
        }
        //运行所有任务钩子方法
        afterRunningAllTasks();
        return ranAtLeastOne;
    }

a.fetchFromScheduledTaskQueue 获取调度任务,添加到队列任务中；

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14


   private boolean fetchFromScheduledTaskQueue() {
        long nanoTime = AbstractScheduledEventExecutor.nanoTime();
        //获取调度任务
        Runnable scheduledTask  = pollScheduledTask(nanoTime);
        while (scheduledTask != null) {
            if (!taskQueue.offer(scheduledTask)) {
                //任务队列满了，重新添加到队列中
                scheduledTaskQueue().add((ScheduledFutureTask<?>) scheduledTask);
                return false;
            }
            scheduledTask  = pollScheduledTask(nanoTime); //while形式获取调度任务
        }
        return true;
    }

b.runAllTasksFrom 执行队列所有任务

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14


     protected final boolean runAllTasksFrom(Queue<Runnable> taskQueue) {
         //过滤WAKEUP_TASK任务
         Runnable task = pollTaskFrom(taskQueue);
         if (task == null) {
             return false;
         }
         for (;;) {
             safeExecute(task);
             task = pollTaskFrom(taskQueue);
             if (task == null) {
                 return true;
             }
         }
     }

(5).runAllTasks(timeoutNanos) 设置超时时间运行所有任务

执行获取调度任务,添加到队列任务中
循环执行队列任务
- 每执行64个任务，检测是否超时

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32


    protected boolean runAllTasks(long timeoutNanos) {
        //执行获取调度任务,添加到队列任务中
        fetchFromScheduledTaskQueue();
        Runnable task = pollTask(); //获取任务
        if (task == null) {
            afterRunningAllTasks(); //钩子
            return false;
        }

        final long deadline = ScheduledFutureTask.nanoTime() + timeoutNanos;
        long runTasks = 0;
        long lastExecutionTime;
        for (;;) {
            safeExecute(task);
            runTasks ++;
            //每执行64个任务，检测是否超时，主要调用nanoTime是相对昂贵的；
            if ((runTasks & 0x3F) == 0) { //0x3F=63
                lastExecutionTime = ScheduledFutureTask.nanoTime();
                if (lastExecutionTime >= deadline) {
                    break;
                }
            }
            task = pollTask();
            if (task == null) {
                lastExecutionTime = ScheduledFutureTask.nanoTime();
                break;
            }
        }
        afterRunningAllTasks();
        this.lastExecutionTime = lastExecutionTime;
        return true;
    }

(6).shutdownGracefully 优雅退出机制

修改状态为ST_SHUTTING_DOWN

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58


   @Override
    public Future<?> shutdownGracefully(long quietPeriod, long timeout, TimeUnit unit) {
        ...验证参数
        //已经执行关闭或者已终止
        if (isShuttingDown()) {
            return terminationFuture();
        }

        boolean inEventLoop = inEventLoop();
        boolean wakeup;
        int oldState;
        for (;;) {
            if (isShuttingDown()) {
                return terminationFuture();
            }
            int newState;
            wakeup = true;
            oldState = state;
            //CAS修改状态ST_SHUTTING_DOWN
            if (inEventLoop) {
                newState = ST_SHUTTING_DOWN;
            } else {
                switch (oldState) {
                    case ST_NOT_STARTED:
                    case ST_STARTED:
                        newState = ST_SHUTTING_DOWN;
                        break;
                    default:
                        newState = oldState;
                        wakeup = false;
                }
            }
            if (STATE_UPDATER.compareAndSet(this, oldState, newState)) {
                break;
            }
        }
        //优雅退出安静期
        gracefulShutdownQuietPeriod = unit.toNanos(quietPeriod);
       //优雅退出超时时间
        gracefulShutdownTimeout = unit.toNanos(timeout);
        //以前状态未开始线程，先开启线程
        if (oldState == ST_NOT_STARTED) {
            try {
                doStartThread();
            } catch (Throwable cause) {
                STATE_UPDATER.set(this, ST_TERMINATED);
                terminationFuture.tryFailure(cause);
                ...
                return terminationFuture;
            }
        }

        if (wakeup) {
            wakeup(inEventLoop);
        }
        return terminationFuture();
    }


a.正常运行finally =>doStartThread

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26


                for (;;) {
                        int oldState = state;
                        // 没有调用优雅关闭，状态可能正常，CAS修改成ST_SHUTTING_DOWN
                        if (oldState >= ST_SHUTTING_DOWN || STATE_UPDATER.compareAndSet(
                                SingleThreadEventExecutor.this, oldState, ST_SHUTTING_DOWN)) {
                            break;
                        }
                    }
                    ...
                    try {
                        //运行所有剩余的任务和关闭挂钩。
                        for (;;) {
                            if (confirmShutdown()) {
                                break;
                            }
                        }
                    } finally {
                        try {
                            cleanup(); //清除钩子方法
                        } finally {
                            STATE_UPDATER.set(SingleThreadEventExecutor.this, ST_TERMINATED); //状态改成ST_TERMINATED
                            threadLock.release();
                            ...
                            terminationFuture.setSuccess(null);
                        }
                    }

b.confirmShutdown 确认关闭

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50



    protected boolean confirmShutdown() {
        if (!isShuttingDown()) {
            return false;
        }
        if (!inEventLoop()) {
            throw new IllegalStateException(...);
        }
        //取消调度队列任务
        cancelScheduledTasks();
        //设置优雅退出开始时间
        if (gracefulShutdownStartTime == 0) {
            gracefulShutdownStartTime = ScheduledFutureTask.nanoTime();
        }
        // 队列没有任务执行，调用runShutdownHooks方法
        //  调用shutdownHooks的钩子方法集合,有任务执行返回true,已经清空集合
        if (runAllTasks() || runShutdownHooks()) {
            if (isShutdown()) {
                // 不再有新任务。
                return true;
            }
            //  队列中有任务。再等待一会儿，直到在静默期没有任何任务排队，或者在静默期为0时终止。
            // See https://github.com/netty/netty/issues/4241
            if (gracefulShutdownQuietPeriod == 0) {
                return true;
            }
            //往队列添加WAKEUP_TASK任务
            wakeup(true);
            return false;
        }

        final long nanoTime = ScheduledFutureTask.nanoTime();
        //超过优雅退出超时时间，立即返回
        if (isShutdown() || nanoTime - gracefulShutdownStartTime > gracefulShutdownTimeout) {
            return true;
        }
        //优雅退出安静期
        if (nanoTime - lastExecutionTime <= gracefulShutdownQuietPeriod) {
            // 检查每100毫秒是否将任何任务添加到队列中。
            wakeup(true);
            try {
                Thread.sleep(100);
            } catch (InterruptedException e) {
                // Ignore
            }
            return false;
        }
        // 在上一个安静的时期未添加任何任务-希望可以安全关闭。（希望是因为我们确实不能保证用户不会执行execute()）
        return true;
    }

b. wakeup 队列中加入唤醒任务

1
2
3
4
5
6


    protected void wakeup(boolean inEventLoop) {
        if (!inEventLoop || state == ST_SHUTTING_DOWN) {
            //使用offer因为我们实际上只需要这个来解锁线程，如果offer失败，我们不在乎，因为队列中已经有东西了。
            taskQueue.offer(WAKEUP_TASK); //队列中加入唤醒任务
        }
    }

3.SingleThreadEventLoop源码分析

单个线程中执行所有提交的任务。

(1).数据结构

1
2
3
4
5
6
7
8


public abstract class SingleThreadEventLoop extends SingleThreadEventExecutor implements EventLoop {

    protected static final int DEFAULT_MAX_PENDING_TASKS = Math.max(16,
            SystemPropertyUtil.getInt("io.netty.eventLoop.maxPendingTasks", Integer.MAX_VALUE));

   //这个队列做啥子
    private final Queue<Runnable> tailTasks;
}

(3).register 注册channel

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11


  @Override
    public ChannelFuture register(Channel channel) {
        return register(new DefaultChannelPromise(channel, this));
    }

    @Override
    public ChannelFuture register(final ChannelPromise promise) {
        ObjectUtil.checkNotNull(promise, "promise");
        promise.channel().unsafe().register(this, promise);//调用Unsafe对象
        return promise;
    }

(4).afterRunningAllTasks

SingleThreadEventExecutor调用runAllTasks最后调用afterRunningAllTasks,在这里就是执行这个队列的任务；

1
2
3
4


  @Override
   protected void afterRunningAllTasks() {
       runAllTasksFrom(tailTasks);
   }

(5).executeAfterEventLoopIteration 只有这个方法才能添加任务

添加一个任务，该任务在下一次（或当前）{Eventloop}迭代结束时运行一次。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14


   public final void executeAfterEventLoopIteration(Runnable task) {
       ObjectUtil.checkNotNull(task, "task");
       if (isShutdown()) {
           reject();
       }

       if (!tailTasks.offer(task)) {
           reject(task);
       }

       if (wakesUpForTask(task)) {
           wakeup(inEventLoop());
       }
   }

(6).tailTasks用处

用于批量提交写入
- 这个模式在低并发场景，并没有什么优势，而在高并发场景下对提升吞吐量有不小的性能提升。

4.NioEventLoop源码分析

(1).属性

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20


  /**
     * The NIO {@link Selector}.
     */
    private Selector selector;
    private Selector unwrappedSelector;
    private SelectedSelectionKeySet selectedKeys;

    private final SelectorProvider provider;

    //控制的布尔值确定阻塞的Selector.select是否应该突破其选择过程。
    // 在我们的例子中，我们使用select方法的超时时间，除非唤醒，否则select方法将阻塞那段时间。
    //唤醒标记，由于select()方法会阻塞
    private final AtomicBoolean wakenUp = new AtomicBoolean();

    private final SelectStrategy selectStrategy;//选择策略

    private volatile int ioRatio = 50;// IO任务占总任务(IO+普通任务)比例
    //SelectionKey取消次数(cancelledKeys)达到CLEANUP_INTERVAL时，needsToSelectAgain为true,获取任务，处理SelectedKeys都要重新selectNow
    private int cancelledKeys;
    private boolean needsToSelectAgain;

(2).构造

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15


NioEventLoop(NioEventLoopGroup parent, Executor executor, SelectorProvider selectorProvider,
                 SelectStrategy strategy, RejectedExecutionHandler rejectedExecutionHandler) {
        super(parent, executor, false, DEFAULT_MAX_PENDING_TASKS, rejectedExecutionHandler);
        if (selectorProvider == null) {
            throw new NullPointerException("selectorProvider");
        }
        if (strategy == null) {
            throw new NullPointerException("selectStrategy");
        }
        provider = selectorProvider;
        final SelectorTuple selectorTuple = openSelector();
        selector = selectorTuple.selector;
        unwrappedSelector = selectorTuple.unwrappedSelector;
        selectStrategy = strategy;
    }

(3).run 方法

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89


    @Override
    protected void run() {
        for (;;) {
            try {
                //hasTasks():先判断SingleThreadEventExecutor.taskQueue队列不为空，在判断SingleThreadEventLoop.tailTasks不空
                // 为true,selector.selectNow()
                // 为false,执行SelectStrategy.SELECT逻辑==>select
                switch (selectStrategy.calculateStrategy(selectNowSupplier, hasTasks())) {
                    case SelectStrategy.CONTINUE:
                        continue;
                    case SelectStrategy.SELECT:
                        select(wakenUp.getAndSet(false));
                        // 1.在调用'selector.wakeup()'之前，总是评估'wakenUp.compareAndSet(false,true)'，以减少唤醒开销(Selector.wakeup()是一个昂贵的操作)。

                        if (wakenUp.get()) {
                            //API文档有具体说明，调用wakeup没有堵塞，下个select时立即返回
                            selector.wakeup();
                        }
                        // fall through
                    default:
                }

                cancelledKeys = 0;
                needsToSelectAgain = false;
                final int ioRatio = this.ioRatio;
                if (ioRatio == 100) {
                    try {
                        processSelectedKeys();
                    } finally {
                        // Ensure we always run tasks.
                        runAllTasks();   //SingleThreadEventExecutor
                    }
                } else {
                    final long ioStartTime = System.nanoTime();
                    try {
                        processSelectedKeys();
                    } finally {
                        // Ensure we always run tasks.
                        final long ioTime = System.nanoTime() - ioStartTime;
                        runAllTasks(ioTime * (100 - ioRatio) / ioRatio);
                    }
                }
            } catch (Throwable t) {
                //异常Thread.sleep(1000);
                handleLoopException(t);
            }
            // Always handle shutdown even if the loop processing threw an exception.
            try {
                if (isShuttingDown()) {
                    closeAll();
                    if (confirmShutdown()) {
                        return;
                    }
                }
            } catch (Throwable t) {
                //异常Thread.sleep(1000);
                handleLoopException(t);
            }
        }
    }

     private void processSelectedKeys() {
         if (selectedKeys != null) {
             processSelectedKeysOptimized(); //优化
         } else {
             processSelectedKeysPlain(selector.selectedKeys());//普通
         }
     }
     //关闭所有通道/NioTask任务
    private void closeAll() {
        selectAgain();
        Set<SelectionKey> keys = selector.keys();
        Collection<AbstractNioChannel> channels = new ArrayList<AbstractNioChannel>(keys.size());
        for (SelectionKey k: keys) {
            Object a = k.attachment();
            if (a instanceof AbstractNioChannel) {
                channels.add((AbstractNioChannel) a);
            } else {
                k.cancel();
                @SuppressWarnings("unchecked")
                NioTask<SelectableChannel> task = (NioTask<SelectableChannel>) a;
                invokeChannelUnregistered(task, k, null);
            }
        }

        for (AbstractNioChannel ch: channels) {
            ch.unsafe().close(ch.unsafe().voidPromise());
        }
    }

a.NIO API说明

select() 阻塞直到有一个感兴趣的IO事件就绪

select(long timeout) 与select()类似，但阻塞的最长时间为给定的timeout

selectNow() 不会阻塞，直接返回而不管是否有IO事件就绪

wakeUp()方法，其功能是唤醒一个阻塞在select()上的线程，使其继续运行。如果先调用了wakeUp()方法，那么下一个select()操作也会立即返回。

此外，wakeUp()是一个昂贵的方法，应尽量减少其调用次数。

b.select

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63


    private void select(boolean oldWakenUp) throws IOException {
        Selector selector = this.selector;
        try {
            int selectCnt = 0;
            long currentTimeNanos = System.nanoTime();
             // delayNanos返回的是最近的一个调度任务的到期时间，没有调度任务返回1秒
             // selectDeadLineNanos指可以进行select操作的截止时间点
            long selectDeadLineNanos = currentTimeNanos + delayNanos(currentTimeNanos);
            for (;;) {
                long timeoutMillis = (selectDeadLineNanos - currentTimeNanos + 500000L) / 1000000L;
                if (timeoutMillis <= 0) {
                    if (selectCnt == 0) {
                        selector.selectNow();
                        selectCnt = 1;
                    }
                    break;
                }
                // 如果某个任务在wakenUp值为true时提交，则该任务没有机会调用Selector＃wakeup。
                // 所以我们需要在执行选择操作之前再次检查任务队列。如果我们不这样做，那么这个任务可能会被暂停，直到选择操作超时。
                // 如果管道中存在IdleStateHandler，则可能会挂起直到空闲超时。
                if (hasTasks() && wakenUp.compareAndSet(false, true)) {
                    selector.selectNow();
                    selectCnt = 1;
                    break;
                }

                int selectedKeys = selector.select(timeoutMillis);
                selectCnt ++;
                //selectedKeys等于0情况，考虑老wakenUp，新wakenUp，任务队列大小，调度任务大小情况
                if (selectedKeys != 0 || oldWakenUp || wakenUp.get() || hasTasks() || hasScheduledTasks()) {
                    // - Selected something,
                    // - waken up by user, or
                    // - the task queue has a pending task.
                    // - a scheduled task is ready for processing
                    break;
                }
                if (Thread.interrupted()) {
                    ...
                    selectCnt = 1;
                    break;
                }

                long time = System.nanoTime();
                if (time - TimeUnit.MILLISECONDS.toNanos(timeoutMillis) >= currentTimeNanos) {
                    //已超时，未选择任何内容
                    selectCnt = 1;
                } else if (SELECTOR_AUTO_REBUILD_THRESHOLD > 0 &&
                        selectCnt >= SELECTOR_AUTO_REBUILD_THRESHOLD) {
                    ...
                    rebuildSelector();
                    selector = this.selector;

                    // Select again to populate selectedKeys.
                    selector.selectNow();
                    selectCnt = 1;
                    break;
                }

                currentTimeNanos = time;
            }
            ...
        }...
    }

由于JDK BUG导致select(timeout)方法并不阻塞而直接返回且返回值为0，从而出现空轮询使CPU完全耗尽。

Netty解决的办法是：调用selector.select(time)操作计数(selectCnt++)，如果次数大于阈值SELECTOR_AUTO_REBUILD_THRESHOLD就新建一个Selector，将注册到老的 Selector上的channel重新注册到新的elector上。阈值SELECTOR_AUTO_REBUILD_THRESHOLD可由用户使用系统变量io.netty.selectorAutoRebuildThreshold配置，默认为512。

i.rebuildSelector 重新创建Selector

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67


    public void rebuildSelector() {
       if (!inEventLoop()) {
           execute(new Runnable() {
               @Override
               public void run() {
                   rebuildSelector0();
               }
           });
           return;
       }
       rebuildSelector0();
   }

   private void rebuildSelector0() {
       final Selector oldSelector = selector;
       final SelectorTuple newSelectorTuple;

       if (oldSelector == null) {
           return;
       }

       try {
           newSelectorTuple = openSelector();//重新创建Selector
       } catch (Exception e) {
           ...
           return;
       }

       // Register all channels to the new Selector.
       int nChannels = 0;
       for (SelectionKey key: oldSelector.keys()) {
           Object a = key.attachment();
           try {
               //判断监听SelectionKey是否有效
               if (!key.isValid() || key.channel().keyFor(newSelectorTuple.unwrappedSelector) != null) {
                   continue;
               }

               int interestOps = key.interestOps();
               key.cancel();
               SelectionKey newKey = key.channel().register(newSelectorTuple.unwrappedSelector, interestOps, a);
               if (a instanceof AbstractNioChannel) {
                   // Update SelectionKey
                   ((AbstractNioChannel) a).selectionKey = newKey;
               }
               nChannels ++;
           } catch (Exception e) {
               if (a instanceof AbstractNioChannel) {
                   AbstractNioChannel ch = (AbstractNioChannel) a;
                   ch.unsafe().close(ch.unsafe().voidPromise());
               } else {
                   @SuppressWarnings("unchecked")
                   NioTask<SelectableChannel> task = (NioTask<SelectableChannel>) a;
                   invokeChannelUnregistered(task, key, e);
               }
           }
       }

       selector = newSelectorTuple.selector;
       unwrappedSelector = newSelectorTuple.unwrappedSelector;

       try {
           // time to close the old selector as everything else is registered to the new one
           oldSelector.close();
       }...

   }

c.processSelectedKeys

1
2
3
4
5
6
7


   private void processSelectedKeys() {
         if (selectedKeys != null) {
             processSelectedKeysOptimized(); //优化
         } else {
             processSelectedKeysPlain(selector.selectedKeys());//普通
         }
     }

1).processSelectedKeysOptimized 优化处理SelectedKeys

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38


  private void processSelectedKeysOptimized() {
        for (int i = 0; i < selectedKeys.size; ++i) {
            final SelectionKey k = selectedKeys.keys[i];
            // null out entry in the array to allow to have it GC'ed once the Channel close
            //在数组中空出条目以允许在频道关闭时使其GC'ed
            // See https://github.com/netty/netty/issues/2363
            selectedKeys.keys[i] = null;

            final Object a = k.attachment();

            if (a instanceof AbstractNioChannel) {
                processSelectedKey(k, (AbstractNioChannel) a);
            } else {

                NioTask<SelectableChannel> task = (NioTask<SelectableChannel>) a;
                processSelectedKey(k, task);
            }

            if (needsToSelectAgain) {
                // null out entries in the array to allow to have it GC'ed once the Channel close
                //在数组中空出条目以允许在频道关闭时使其GC'ed
                // See https://github.com/netty/netty/issues/2363
                selectedKeys.reset(i + 1);

                selectAgain();
                i = -1;
            }
        }
    }

    private void selectAgain() {
        needsToSelectAgain = false;
        try {
            selector.selectNow();
        } catch (Throwable t) {
            logger.warn("Failed to update SelectionKeys.", t);
        }
    }

selectedKeys在openSelector()方法中初始化，Netty通过反射修改了Selector的selectedKeys成员和publicSelectedKeys成员。替换成了自己的实现——SelectedSelectionKeySet。
从OpenJDK 6/7的SelectorImpl中可以看到，selectedKeys和publicSeletedKeys均采用了HashSet实现。HashSet采用HashMap实现，插入需要计算Hash并解决Hash冲突并挂链，而SelectedSelectionKeySet实现使用了双数组，每次插入尾部，扩展策略为double，调用flip()则返回当前数组并切换到另外一个数据。
https://github.com/netty/netty/issues/6058#，目前在4.1.9.Final 版本中，netty已经将SelectedSelectionKeySet.java 底层使用一个数组了

2).processSelectedKey 处理SelectedKey

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51



  private void processSelectedKey(SelectionKey k, AbstractNioChannel ch) {
      final AbstractNioChannel.NioUnsafe unsafe = ch.unsafe();
      if (!k.isValid()) {
          final EventLoop eventLoop;
          try {
              eventLoop = ch.eventLoop();
          } catch (Throwable ignored) {
              // If the channel implementation throws an exception because there is no event loop, we ignore this
              // because we are only trying to determine if ch is registered to this event loop and thus has authority
              // to close ch.
              //如果通道实现抛出一个异常，因为没有事件循环，我们忽略这个，因为我们只是试图确定ch是否注册到这个事件循环，因此有权关闭ch。
              return;
          }
          // Only close ch if ch is still registered to this EventLoop. ch could have deregistered from the event loop
          // and thus the SelectionKey could be cancelled as part of the deregistration process, but the channel is
          // still healthy and should not be closed.
          //如果ch仍然被注册到这个EventLoop，只关闭ch。 ch可以从事件循环中注销，因此SelectionKey可以作为注销过程的一部分被取消，但是频道仍然健康，
          // 不应该被关闭
          // See https://github.com/netty/netty/issues/5125
          if (eventLoop != this || eventLoop == null) {
              return;
          }
          // close the channel if the key is not valid anymore
          unsafe.close(unsafe.voidPromise());
          return;
      }

      try {
          int readyOps = k.readyOps();
          if ((readyOps & SelectionKey.OP_CONNECT) != 0) {
              int ops = k.interestOps();
              ops &= ~SelectionKey.OP_CONNECT;
              k.interestOps(ops);
              unsafe.finishConnect();
          }

          // 首先处理OP_WRITE，因为我们可能会写入一些排队的缓冲区和空闲内存。
          if ((readyOps & SelectionKey.OP_WRITE) != 0) {
              //有写的事件，立即执行Flush，一旦没有任何信息写入，它也将清除OP_WRITE
              ch.unsafe().forceFlush();
          }
          //同时检查readOps为0以解决可能导致旋转循环的可能的JDK错误
          if ((readyOps & (SelectionKey.OP_READ | SelectionKey.OP_ACCEPT)) != 0 || readyOps == 0) {
              unsafe.read();
          }
      } catch (CancelledKeyException ignored) {
          unsafe.close(unsafe.voidPromise());
      }
  }

2).processSelectedKeysPlain

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39


   private void processSelectedKeysPlain(Set<SelectionKey> selectedKeys) {
        // check if the set is empty and if so just return to not create garbage by
        // creating a new Iterator every time even if there is nothing to process.
        // See https://github.com/netty/netty/issues/597
        if (selectedKeys.isEmpty()) {
            return;
        }

        Iterator<SelectionKey> i = selectedKeys.iterator();
        for (;;) {
            final SelectionKey k = i.next();
            final Object a = k.attachment();
            i.remove();

            if (a instanceof AbstractNioChannel) {
                processSelectedKey(k, (AbstractNioChannel) a);
            } else {
                @SuppressWarnings("unchecked")
                NioTask<SelectableChannel> task = (NioTask<SelectableChannel>) a;
                processSelectedKey(k, task);
            }

            if (!i.hasNext()) {
                break;
            }

            if (needsToSelectAgain) {
                selectAgain();
                selectedKeys = selector.selectedKeys();

                // Create the iterator again to avoid ConcurrentModificationException
                if (selectedKeys.isEmpty()) {
                    break;
                } else {
                    i = selectedKeys.iterator();
                }
            }
        }
    }

(4).重写newTaskQueue方法，MpscQueue提高了性能

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21



   @Override
   protected Queue<Runnable> newTaskQueue(int maxPendingTasks) {
       // This event loop never calls takeTask()
       return maxPendingTasks == Integer.MAX_VALUE ? PlatformDependent.<Runnable>newMpscQueue()
                                                   : PlatformDependent.<Runnable>newMpscQueue(maxPendingTasks);
   }

   @Override
   public int pendingTasks() {
       // As we use a MpscQueue we need to ensure pendingTasks() is only executed from within the EventLoop as
       // otherwise we may see unexpected behavior (as size() is only allowed to be called by a single consumer).
       //当我们使用MpscQueue时，我们需要确保pendingTasks（）只能在EventLoop中执行，否则我们可能会看到意外的行为（因为size（）只允许被单个使用者调用）。
       // See https://github.com/netty/netty/issues/5297
       if (inEventLoop()) {
           return super.pendingTasks();
       } else {
           return submit(pendingTasksCallable).syncUninterruptibly().getNow();
       }
   }


文章目录

一、线程模型

二、NioEventLoopGroup线程池分析

1.NioEventLoopGroup的类图结构

2.EventLoopGroup接口图

1.AbstractEventExecutorGroup 抽象类源码

2.MultithreadEventExecutorGroup 抽象类源码

(1).数据结构

(2).构造

a.chooserFactory.newChooser 创建EventExecutor线程选择器

b.DefaultEventExecutorChooserFactory 源码分析

(3).next 获取EventExecutor线程对象

(4).shutdownGracefully 循环调用EventExecutor#shutdownGracefully

3.MultithreadEventLoopGroup

(1).next() 分配EventLoop

(2).register 注册channel,EventLoop执行；

(2)newDefaultThreadFactory,创建DefaultThreadFactory

4.NioEventLoopGroup 源码分析

(1).构造

(2).newChild 创建NioEventLoop

二、NioEventLoop分析

1.NioEventLoop的实现类图结构

2.EventLoop接口类图

3.AbstractEventExecutor源码分析

(1).数据结构

(2).next() 指定当前EventExecutor

(3).shutdownGracefully()

(4).pollScheduledTask 获取调度任务

(5).cancelScheduledTasks 取消调度任务

4.AbstractScheduledEventExecutor支持调度的的抽象基类

(1).数据结构，创建PriorityQueue(优先队列)，利用优先队列，支持调度

(2).优先级队列任务实现ScheduledFutureTask

a.ScheduledFutureTask的类图

b.数据结构

c.nanoTime() 获取当前相对纳秒时间

d.run 核心执行方法

e.getDelay 获取延迟时间

(3).scheduledTaskQueue 获取优先级队列

(4).schedule

5.SingleThreadEventExecutor源码分析

(1).数据结构

(2).execute 添加任务，

1).inEventLoop 执行任务线程是否EventLoop线程

2).startThread 开启线程

a.doStartThread 启动线程开始

(3).addTask 添加任务

(4).runAllTasks() 运行所有任务

a.fetchFromScheduledTaskQueue 获取调度任务,添加到队列任务中；

b.runAllTasksFrom 执行队列所有任务

(5).runAllTasks(timeoutNanos) 设置超时时间运行所有任务

(6).shutdownGracefully 优雅退出机制

a.正常运行finally =>doStartThread

b.confirmShutdown 确认关闭

b. wakeup 队列中加入唤醒任务

3.SingleThreadEventLoop源码分析

(1).数据结构

(3).register 注册channel

(4).afterRunningAllTasks

(5).executeAfterEventLoopIteration 只有这个方法才能添加任务

(6).tailTasks用处

4.NioEventLoop源码分析

(1).属性

(2).构造

(3).run 方法

a.NIO API说明

b.select

i.rebuildSelector 重新创建Selector

c.processSelectedKeys

1).processSelectedKeysOptimized 优化处理SelectedKeys

2).processSelectedKey 处理SelectedKey

2).processSelectedKeysPlain

(4).重写newTaskQueue方法，MpscQueue提高了性能
