一、简介

Netty内存池了解几个概念：

jemalloc一致的内存分配算法 jemalloc这块博客写不错; http://people.freebsd.org/~jasone/jemalloc/bsdcan2006/jemalloc.pdf https://www.facebook.com/notes/facebook-engineering/scalable-memory-allocation-using-jemalloc/480222803919
buddy allocation buddy
slab allocation slav

1.核心类介绍

PoolArena是分配管理内存区域;
PoolChunk是内存区域，默认大小是4M。以page(默认为4K)为单位进行管理;
PoolSubpag是小于page内存管理；分Tiny(小于512内存)和Small(小于4K)两个类型；
PoolChunkList是提高内存分配效率并减少内部碎片；
PoolThreadCache是分配的线程缓存；

先从PoolChunk讲起

二、PoolChunk 源码分析

PoolChunk类主要负责内存块的分配与回收;以下术语对于理解代码很重要

page - 分配内存块的最小单位。
chunk - page的集合
代码中chunkSize = 2^{maxOrder(二叉树高度)} * pageSize(page大小)

首先我们分配一个size = chunkSize的字节数组。每当需要创建给定大小的ByteBuf时，我们搜索字节数组中的第一个位置，该位置具有足够的空白空间来容纳请求的大小，并返回一个编码这个偏移信息（这个内存段被标记为保留，所以它总是被一个ByteBuf使用)

1.是怎么管理page的集合呢？

用数组实现满二叉树结构；运用满二叉树结构管理内存page是否分配完，以及该节点能分配多少内存; 数组的内容保存当前节点高度；节点高度区分该节点能分配多少内存；

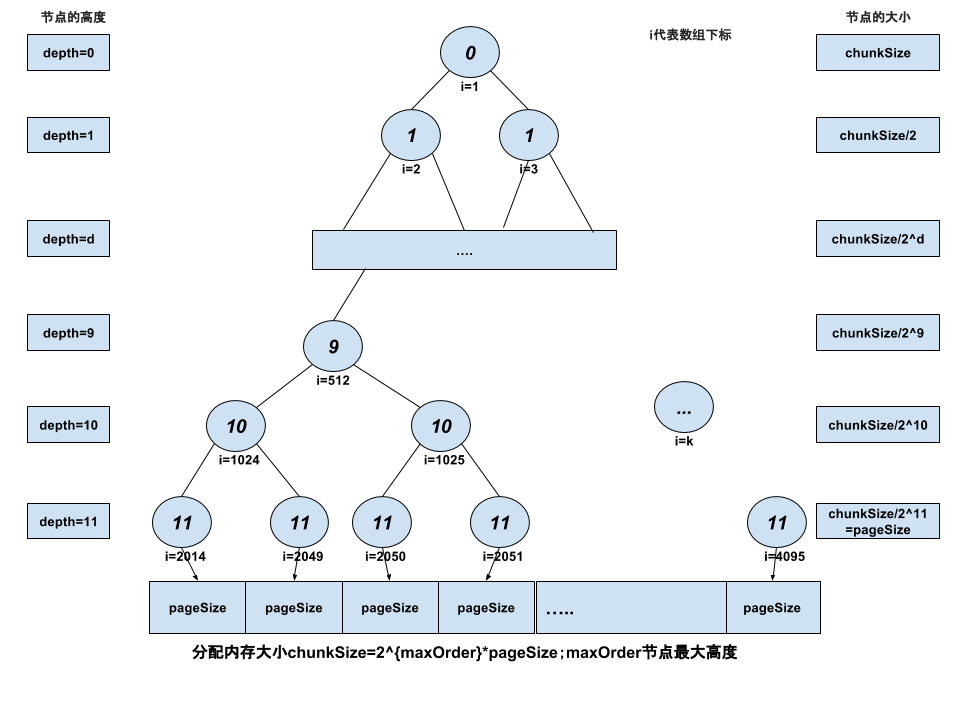

树结构如图下：

根据节点高度值，就知道能分配多少，例如根节点高度为零，就能能分配chunkSize大小内存，高度为1，能分配chunkSize/2…高度为11只能分配pageSize大小;
判断该节点内存是否分配完，根据节点高度，高度等于总层数 + 1；已经分配完；
当我们分配和释放节点时，我们更新存储在memoryMap中的值，以便判定节点是否分配含义：
- 1）memoryMap数组，默认初始化该节点高度，例如:memoryMap[512] = 9，则表示其本身到下面所有的子节点都可以被分配；
- 2）memoryMap[512] = val (从10到11), 则表示512节点下有子节点已经分配过，则该节点不能直接被分配，而其子节点中的第val和val以下层还存在未分配的节点;
- 3）memoryMap[512] = 12 (即总层数 + 1）, 可分配的深度已经大于总层数, 则该节点下的所有子节点都已经被分配

2.数据结构

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31


final class PoolChunk<T> implements PoolChunkMetric {

    private static final int INTEGER_SIZE_MINUS_ONE = Integer.SIZE - 1;

    final PoolArena<T> arena;  //PoolArena 管理PoolChunk
    final T memory;            //实际分配内存容量为chunkSize的byte[](heap方式)或ByteBuffer(direct方式)
    final boolean unpooled;    //是否启动内存池状态
    final int offset;

    private final byte[] memoryMap;  //分配内存状态满二叉树数组
    private final byte[] depthMap;   //保存满二叉树高度值数组，构造时memoryMap和depthMap都相同数据
    private final PoolSubpage<T>[] subpages;//分配少于pageSize内存空间
    /** Used to determine if the requested capacity is equal to or greater than pageSize. */
    private final int subpageOverflowMask;   //确定请求的容量是否等于或大于pageSize
    private final int pageSize;  //page大小
    private final int pageShifts; // log2(pageSize)
    private final int maxOrder;   //满二叉树的高度
    private final int chunkSize;  //2^{maxOrder} * pageSize
    private final int log2ChunkSize;//log2(chunkSize)
    private final int maxSubpageAllocs;//1 << maxOrder=2^{maxOrder}   满二叉树的叶节点数量
    /** Used to mark memory as unusable */
    //用于分配内存标示，unusable=maxOrder + 1 这块内存已分配完成
    private final byte unusable; //maxOrder + 1

    private int freeBytes; //分配字节数量

    //PoolChunkList
    PoolChunkList<T> parent;
    PoolChunk<T> prev;
    PoolChunk<T> next;
}

毋庸置疑管理内存核心就是memoryMap数组，这个数组展示满二叉树结构，具备二叉树的结构；

3.构造

pageSize 默认4k
chunkSize 16MiB
maxOrder 11
pageShifts log2(pageShifts) 11

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43


   PoolChunk(PoolArena<T> arena, T memory, int pageSize, int maxOrder, int pageShifts, int chunkSize, int offset) {
        unpooled = false;
        this.arena = arena;
        this.memory = memory;
        this.pageSize = pageSize;
        this.pageShifts = pageShifts;
        this.maxOrder = maxOrder;
        this.chunkSize = chunkSize;
        this.offset = offset;
        unusable = (byte) (maxOrder + 1);
        log2ChunkSize = log2(chunkSize);
        subpageOverflowMask = ~(pageSize - 1);
        freeBytes = chunkSize;

        assert maxOrder < 30 : "maxOrder should be < 30, but is: " + maxOrder;
        maxSubpageAllocs = 1 << maxOrder;//2^{maxOrder} 满二叉树叶节点数量

        // Generate the memory map.
        memoryMap = new byte[maxSubpageAllocs << 1];//满二叉树2^{maxOrder+1} -1个结点，数组下标0不为二叉树根节点，
                                                    // 下标1才是树根节点，节点计算2^{maxOrder+1}

        depthMap = new byte[memoryMap.length];
        int memoryMapIndex = 1; //数组从下标1开始
        //赋值满二叉树数组高度值   满二叉树的第d层有2 ^d 个结点
        for (int d = 0; d <= maxOrder; ++ d) { // move down the tree one level at a time
            int depth = 1 << d; //2 ^d
            for (int p = 0; p < depth; ++ p) {
                // in each level traverse left to right and set value to the depth of subtree
                memoryMap[memoryMapIndex] = (byte) d;
                depthMap[memoryMapIndex] = (byte) d;
                memoryMapIndex ++;
            }
        }
        //PoolSubpage作用就是分配小于4k内存，具体下面做分析
        subpages = newSubpageArray(maxSubpageAllocs);//创建PoolSubpage数组，大小为叶子节点数量
    }


   @SuppressWarnings("unchecked")
   private PoolSubpage<T>[] newSubpageArray(int size) {
       return new PoolSubpage[size];
   }

4.分配(allocate)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10


    //normCapacity在PoolArena类中已经处理过，例如：申请分配9k内存，实际分配内存16K
   //返回long类型数组下标值，-1说明没找分配内存，
   //数组下标值int就可以满足，主要原因在于申请内存容量小于pageSize，分配机制PoolSubpage管理，所以PoolSubpage返回long一个状态标示，具体在PoolSubpage说明；
    long allocate(int normCapacity) {
        if ((normCapacity & subpageOverflowMask) != 0) { // normCapacity>= pageSize
            return allocateRun(normCapacity); //chunk 正常分配
        } else {
            return allocateSubpage(normCapacity);//小于pageSize，PoolSubpage进行分配
        }
    }

a.allocateRun分配大于等于pageSize内存

 1
 2
 3
 4
 5
 6
 7
 8
 9
10


    private long allocateRun(int normCapacity) {
        //获取normCapacity所在高度，log2(normCapacity) - pageShifts(log2(pageSize))=log2(normCapacity-pageSize)，获取normCapacity高度
        int d = maxOrder - (log2(normCapacity) - pageShifts);//maxOrder-normCapacity高度，WHY?？分配内存二叉树高度越低，分配内存越大；跟正常高度相反；
        int id = allocateNode(d);
        if (id < 0) {
            return id;
        }
        freeBytes -= runLength(id);
        return id;
    }

b.allocateNode获取节点下标值allocateNode

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34


    private int allocateNode(int d) {
        //从根节点遍历查询分配节点数组下标id
        int id = 1;
        int initial = - (1 << d); // has last d bits = 0 and rest all = 1
                                  // 例如d=3，1<<3=8,
                                 //  8=0000 0000 0000 0000 0000 0000 0000 1000
                                 //  -8=1111 1111 1111 1111 1111 1111 1111 1000
                                 //
        byte val = value(id);
        if (val > d) { // unusable  根节点高度大于申请分配内存高度，说明根节点值unusable状态或者分配内存不够，不可以在分配；
            return -1;
        }
        //当高度d时所有id相等这个等式id & initial == 1 << d，然而小于高度d的节点下标的id时相等这个等式(id & initial) == 0
        //这里为什么这么做，主要原因时分配内存时，更新父类值，获取子类最小值；查找父类节点高度值，看是否能获取相应分配内存
        while (val < d || (id & initial) == 0) { // id & initial == 1 << d for all ids at depth d, for < d it is 0
            id <<= 1; //找子类左节点
            val = value(id);
            if (val > d) {
                id ^= 1;    //子类右节点
                val = value(id);
            }
        }
        byte value = value(id);
        ...
        setValue(id, unusable); // mark as unusable 把当前节点设置不可以在分配
        updateParentsAlloc(id); //更新父节点值
        return id;
    }
   private byte value(int id) {
        return memoryMap[id];
    }
    private void setValue(int id, byte val) {
        memoryMap[id] = val;
    }

c.更新父节点以及追加到根节点的高度值

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13


    /**
      * 更新父节点的高度值，往上更新
      */
     private void updateParentsAlloc(int id) {
         while (id > 1) {
             int parentId = id >>> 1;  //id/2获取父节点
             byte val1 = value(id);
             byte val2 = value(id ^ 1);//id ^ 1设计不错，可以获取左节点，又可以获取右节点
             byte val = val1 < val2 ? val1 : val2;//获取最小值
             setValue(parentId, val);  //把子节点最小值赋给父节点
             id = parentId; //往上更新，递归树结构
         }
     }

5.free释放内存分两种大于等page的大小以及小于page;分配逻辑也不同，释放也分两种；

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43


    void free(long handle) {
        int memoryMapIdx = memoryMapIdx(handle);//获取memoryMap数组下标值
        int bitmapIdx = bitmapIdx(handle);      //获取PoolSubpage中bitmap下标值

        //这块PoolSubpage做具体分析，主要作用就是释放subpage
        if (bitmapIdx != 0) { // free a subpage
            PoolSubpage<T> subpage = subpages[subpageIdx(memoryMapIdx)];
            assert subpage != null && subpage.doNotDestroy;

            // Obtain the head of the PoolSubPage pool that is owned by the PoolArena and synchronize on it.
            // This is need as we may add it back and so alter the linked-list structure.
            PoolSubpage<T> head = arena.findSubpagePoolHead(subpage.elemSize);
            synchronized (head) {
                //0x3FFFFFFF=1<<30-1;
                //bitmapIdx & 0x3FFFFFFF为什么这么操作？
                //在PoolSubpage分配内存时，组装返回值中有个标示状态(PoolSubpage分配具体说明)占最高2位；所以这样排除最高2位处理，获取真正bitmapIdx值；
                if (subpage.free(head, bitmapIdx & 0x3FFFFFFF)) {//
                    return;
                }
            }
        }

        freeBytes += runLength(memoryMapIdx);//释放内存大小
        setValue(memoryMapIdx, depth(memoryMapIdx));//设置高度
        updateParentsFree(memoryMapIdx);
    }
    private static int memoryMapIdx(long handle) {
        return (int) handle;
    }

    private static int bitmapIdx(long handle) {
        return (int) (handle >>> Integer.SIZE);
    }
    private byte depth(int id) {
        return depthMap[id];
    }
    private int runLength(int id) {
        // represents the size in #bytes supported by node 'id' in the tree
        // (1 << (maxOrder - depth(id)))*pageSize ==> (1 << (maxOrder - depth(id)))* 1<< log2(pageSize)  ==>
        // log2ChunkSize 高度包括pageSize高度
        return 1 << log2ChunkSize - depth(id);
    }

a.释放内存更新父节点以及追加到根节点的高度值

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19


    private void updateParentsFree(int id) {
        int logChild = depth(id) + 1;
        while (id > 1) {
            int parentId = id >>> 1;
            byte val1 = value(id);
            byte val2 = value(id ^ 1);
            logChild -= 1; // in first iteration equals log, subsequently reduce 1 from logChild as we traverse up
            //logChild判断孩子节点是否分配；都没分配把父节点修改成高度值，有个孩子分配，父节点修改成孩子中最小值
            if (val1 == logChild && val2 == logChild) {
                //logChild - 1 修改成以前高度节点，子类都可以分配内存
                setValue(parentId, (byte) (logChild - 1));
            } else {
                byte val = val1 < val2 ? val1 : val2;
                setValue(parentId, val);
            }

            id = parentId;//往上迭代
        }
    }

logChild - 1？？前置条件左节点和右节点高度相同，且根释放节点高度相同；
- 例如：该叶节点的释放(高度11)和该节点右节点也释放(高度11)，按左右节点大小判断，父节点的高度11，这里错；赋值为高度-1；

6.initBuf初始化PooledByteBuf

调用PooledByteBuf.init进行初始化操作

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30


  void initBuf(PooledByteBuf<T> buf, long handle, int reqCapacity) {
        int memoryMapIdx = (int)handle;
        int bitmapIdx = (int)(handle >>> 32);
        if (bitmapIdx == 0) {
            byte val = this.value(memoryMapIdx);

            assert val == this.unusable : String.valueOf(val);
             //runOffset(memoryMapIdx) 获取偏移量
             //this.runLength(memoryMapIdx)实际分配内存
            buf.init(this, handle, this.runOffset(memoryMapIdx), reqCapacity, this.runLength(memoryMapIdx), this.arena.parent.threadCache());
        } else {
            this.initBufWithSubpage(buf, handle, bitmapIdx, reqCapacity);
        }

    }

     private byte depth(int id) {
              return depthMap[id];
          }
          private int runLength(int id) {
              // represents the size in #bytes supported by node 'id' in the tree
              return 1 << log2ChunkSize - depth(id);
          }
      //获取数组下标偏移量
      private int runOffset(int id) {
          // represents the 0-based offset in #bytes from start of the byte-array chunk
          //表示从字节数组块开始的以字节为单位的基于0的偏移量
          int shift = id ^ 1 << depth(id); //获取d层所有节点从左到右排列顺序（0标示开始）；先执行1 << depth(id)，获取节点数量，也是该层开始下标位置；获取该层节点从左到右下标位置；
          return shift * runLength(id);    //获取实际内存地址标偏移量，runLength(id)获取该id的层分配大小；
      }

三、PoolSubpage 源码分析

PoolSubpage管理小于page的大小集合；分Tiny(小于512内存)和Small(小于4K)两个类型；基于page大小分配相同类型集合；

1.数据结构

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19


final class PoolSubpage<T> implements PoolSubpageMetric {

    final PoolChunk<T> chunk;     //属于chunk内存区域
    private final int memoryMapIdx;//PoolChunk中memoryMap数组下标
    private final int runOffset;   //PoolChunk中内存偏移量
    private final int pageSize;    //PoolChunk中page大小
    private final long[] bitmap;   //

    //PoolArena管理关联，后面具体说明
    PoolSubpage<T> prev;
    PoolSubpage<T> next;

    boolean doNotDestroy;           //是否需要释放整个Page
    int elemSize;                  //最小分配大小
    private int maxNumElems;       //该page包含的段数量
    private int bitmapLength;      //bitmap长度
    private int nextAvail;         //下一个可用的位置
    private int numAvail;          //可用段数量
}

2.构造

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20


 //创建链接列表头的特殊构造函数。
    PoolSubpage(int pageSize) {
        chunk = null;
        memoryMapIdx = -1;
        runOffset = -1;
        elemSize = -1;
        this.pageSize = pageSize;
        bitmap = null;
    }

    PoolSubpage(PoolSubpage<T> head, PoolChunk<T> chunk, int memoryMapIdx, int runOffset, int pageSize, int elemSize) {
        this.chunk = chunk;
        this.memoryMapIdx = memoryMapIdx;
        this.runOffset = runOffset;
        this.pageSize = pageSize;
        //分配最小值16，long是64位代表64个块段区状态，所以pageSize / 16 / 64=pageSize >>> 10得到分配最大数组容量
        //为什么这里创建最大容量数组？PoolSubpage可以重复利用，只是elemSize大小可能不同，导致容量大小不同，就设置最大容量数组，不用每次重新创建内存大小；
        bitmap = new long[pageSize >>> 10]; // pageSize / 16 / 64
        init(head, elemSize);//分配elemSize大小
    }

3.init 重新构建elemSize大小块

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26


  void init(PoolSubpage<T> head, int elemSize) {
        doNotDestroy = true;
        this.elemSize = elemSize;
        if (elemSize != 0) {
            maxNumElems = numAvail = pageSize / elemSize;//分多个elemSize大小块段区
            nextAvail = 0;
            bitmapLength = maxNumElems >>> 6; // long是64位代表64个块段区状态
            if ((maxNumElems & 63) != 0) { //就是bitmapLength>>6=0情况，bitmapLength=1；
                bitmapLength ++;
            }

            for (int i = 0; i < bitmapLength; i ++) { //初始化bitmap值
                bitmap[i] = 0;
            }
        }
        addToPool(head);
    }

    //往头链表拼接形成环绕
    private void addToPool(PoolSubpage<T> head) {
        assert prev == null && next == null;
        prev = head;
        next = head.next;
        next.prev = this;
        head.next = this;
    }

4.PoolChunk#allocateSubpage分配小于pageSize内存创建或者重构PoolSubpage

PoolChunk类

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42


    private long allocateSubpage(int normCapacity) {
        // Obtain the head of the PoolSubPage pool that is owned by the PoolArena and synchronize on it.
        // This is need as we may add it back and so alter the linked-list structure.
        // 获取PoolArena拥有的PoolSubPage池的中获取头节点;进行head加锁
        PoolSubpage<T> head = arena.findSubpagePoolHead(normCapacity);
        synchronized (head) {
            int d = maxOrder; // subpages are only be allocated from pages i.e., leaves
            int id = allocateNode(d);//PoolChunk中分配可用内存id
            if (id < 0) {
                return id;
            }

            final PoolSubpage<T>[] subpages = this.subpages;
            final int pageSize = this.pageSize;

            freeBytes -= pageSize;

            int subpageIdx = subpageIdx(id);//获取subpages数组下标值；
            PoolSubpage<T> subpage = subpages[subpageIdx];
            if (subpage == null) {
                //创建PoolSubpage
                subpage = new PoolSubpage<T>(head, this, id, runOffset(id), pageSize, normCapacity);
                subpages[subpageIdx] = subpage;
            } else {
                //重新构建normCapacity大小块内存
                subpage.init(head, normCapacity);
            }
            //PoolSubpage分配normCapacity大小内存
            return subpage.allocate();
        }
    }
    private int subpageIdx(int memoryMapIdx) {
        return memoryMapIdx ^ maxSubpageAllocs; // remove highest set bit, to get offset 获取节点下标从左到右,从零开始
    }
    //获取数组下标偏移量
    private int runOffset(int id) {
        // represents the 0-based offset in #bytes from start of the byte-array chunk
        //表示从字节数组块开始的以字节为单位的基于0的偏移量
        int shift = id ^ 1 << depth(id); //获取d层所有节点从左到右排列顺序（0标示开始）；
        return shift * runLength(id);    //获取实际内存地址标偏移量，runLength(id)获取该id的层分配大小；
    }


5.allocate分配内存

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43


  /**
     * Returns the bitmap index of the subpage allocation.
     */
    long allocate() {
        if (elemSize == 0) {
            return toHandle(0);
        }

        if (numAvail == 0 || !doNotDestroy) {
            return -1;
        }

        final int bitmapIdx = getNextAvail();//获取下个可用块内存
        int q = bitmapIdx >>> 6; //bitmapIdx/64，获取bitmap数组下标值
        int r = bitmapIdx & 63;  //获取63内下标值
        assert (bitmap[q] >>> r & 1) == 0;
        bitmap[q] |= 1L << r;    //在long类型64位相应下标值赋值位1；

        if (-- numAvail == 0) {
            removeFromPool();
        }

        return toHandle(bitmapIdx);
    }

   // |<--     64-63    -->|<--   62-32   -->| <--   32      --> |
   // |      01(状态标示)   |   bitmapIdx     |  memoryMapIdx     |
   //0x4000000000000000L=1<<62
   //bitmapIdx(最大值512)30位足够保存相应值
   //状态标示有个作用，bitmapIdx位零时，没有这个状态不能区分分配内存大于pageSize
    private long toHandle(int bitmapIdx) {
        return 0x4000000000000000L | (long) bitmapIdx << 32 | memoryMapIdx;
    }

    //删除该链表
    private void removeFromPool() {
        assert prev != null && next != null;
        prev.next = next;
        next.prev = prev;
        next = null;
        prev = null;
    }


a.查找可以分配内存getNextAvail

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41


  private int getNextAvail() {
        int nextAvail = this.nextAvail;
        if (nextAvail >= 0) {    //为什么这里判断nextAvail >= 0成立时又将this.nextAvail = -1呢？
                                 //nextAvail只有两个地方赋值为nextAvail >= 0；在初始化赋值为零和在释放内存块时赋值相应值；
                                 //nextAvail = -1重新迭代查询中间是否有释放内存块；
            this.nextAvail = -1;
            return nextAvail;
        }
        return findNextAvail();
    }

    private int findNextAvail() {
        final long[] bitmap = this.bitmap;
        final int bitmapLength = this.bitmapLength;
        for (int i = 0; i < bitmapLength; i ++) {
            long bits = bitmap[i];
            if (~bits != 0) {  //有分配内存
                return findNextAvail0(i, bits);
            }
        }
        return -1;
    }

    //获取nextAvail值
    private int findNextAvail0(int i, long bits) {
        final int maxNumElems = this.maxNumElems;
        final int baseVal = i << 6;//i*64

        for (int j = 0; j < 64; j ++) {
            if ((bits & 1) == 0) {
                int val = baseVal | j;
                if (val < maxNumElems) {
                    return val;
                } else {
                    break;
                }
            }
            bits >>>= 1;
        }
        return -1;
    }

6.free释放内存

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36


    boolean free(PoolSubpage<T> head, int bitmapIdx) {
        if (elemSize == 0) {
            return true;
        }
        int q = bitmapIdx >>> 6;
        int r = bitmapIdx & 63;
        assert (bitmap[q] >>> r & 1) != 0;
        bitmap[q] ^= 1L << r;

        setNextAvail(bitmapIdx);

        if (numAvail ++ == 0) { //不可分配内存中正好释放一个块内存，添加到缓存链表中
            addToPool(head);
            return true;
        }

        if (numAvail != maxNumElems) {
            return true;
        } else {
            // Subpage not in use (numAvail == maxNumElems)
            if (prev == next) {
                // Do not remove if this subpage is the only one left in the pool.
                //如果subpage池中唯一的一个，请不要删除。
                return true;
            }

            // Remove this subpage from the pool if there are other subpages left in the pool.
            //如果池中还有其他subpage，则从池中删除该子页面。
            doNotDestroy = false;
            removeFromPool();
            return false;
        }
    }
    private void setNextAvail(int bitmapIdx) {
        nextAvail = bitmapIdx;
    }

7.initBufWithSubpage

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18


   void initBufWithSubpage(PooledByteBuf<T> buf, long handle, int reqCapacity) {
        this.initBufWithSubpage(buf, handle, (int)(handle >>> 32), reqCapacity);
    }

    private void initBufWithSubpage(PooledByteBuf<T> buf, long handle, int bitmapIdx, int reqCapacity) {
        assert bitmapIdx != 0;

        int memoryMapIdx = (int)handle;
        PoolSubpage<T> subpage = this.subpages[this.subpageIdx(memoryMapIdx)];

        assert subpage.doNotDestroy;

        assert reqCapacity <= subpage.elemSize;
         //1073741823=0x3FFFFFFF free做具体分析这里不做分析
         //his.runOffset(memoryMapIdx) + (bitmapIdx & 1073741823) * subpage.elemSize 获取偏移量
         //subpage.elemSize实际分配内存
        buf.init(this, handle, this.runOffset(memoryMapIdx) + (bitmapIdx & 1073741823) * subpage.elemSize, reqCapacity, subpage.elemSize, this.arena.parent.threadCache());
    }

四、PoolChunkList 源码分析

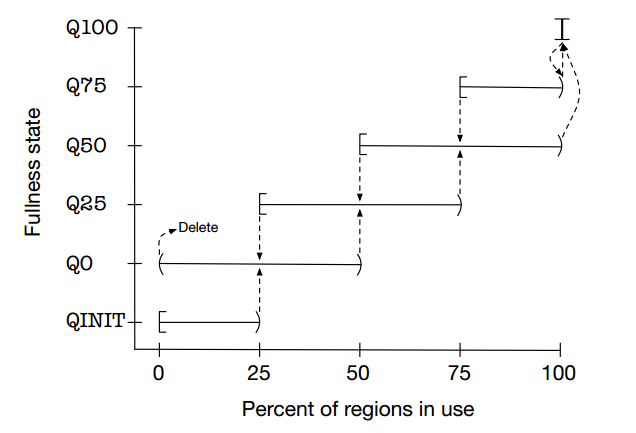

为了提高内存分配效率并减少内部碎片，jemalloc算法将Arena切分为小块Chunk，根据每块的内存使用率又将小块组合为以下几种状态： QINIT，Q0，Q25，Q50，Q75，Q100。Chunk块可以在这几种状态间随着内存使用率的变化进行转移，内存使用率和状态转移可参见下图：

PoolChunkList管理chunk状态；

1.数据结构

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13


final class PoolChunkList<T> implements PoolChunkListMetric {
    private static final Iterator<PoolChunkMetric> EMPTY_METRICS = Collections.<PoolChunkMetric>emptyList().iterator();
    private final PoolArena<T> arena; //所属的Arena
    private final PoolChunkList<T> nextList;//next状态
    private final int minUsage;  //最小内存使用率
    private final int maxUsage;  //最大内存使用率
    private final int maxCapacity;//Chunk可分配的最大字节数
    private PoolChunk<T> head; //Chunk头节点

    // This is only update once when create the linked like list of PoolChunkList in PoolArena constructor.
    //这只是在PoolArena构造函数中创建PoolChunkList的链接列表时更新一次
    private PoolChunkList<T> prevList;//prev状态
 }

2.构造

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34


 PoolChunkList(PoolArena<T> arena, PoolChunkList<T> nextList, int minUsage, int maxUsage, int chunkSize) {
        assert minUsage <= maxUsage;
        this.arena = arena;
        this.nextList = nextList;
        this.minUsage = minUsage;
        this.maxUsage = maxUsage;
        maxCapacity = calculateMaxCapacity(minUsage, chunkSize);
    }

    private static int calculateMaxCapacity(int minUsage, int chunkSize) {
        minUsage = minUsage0(minUsage);

        if (minUsage == 100) {
            // If the minUsage is 100 we can not allocate anything out of this list.
            //如果minUsage是100，我们不能从这个列表中分配任何东西。
            return 0;
        }

        // Calculate the maximum amount of bytes that can be allocated from a PoolChunk in this PoolChunkList.
        // 计算PoolChunkList中可以从PoolChunk分配的最大字节数。
        // As an example: 例如
        // - If a PoolChunkList has minUsage == 25 we are allowed to allocate at most 75% of the chunkSize because
        //   this is the maximum amount available in any PoolChunk in this PoolChunkList.
        //如果PoolChunkList的minUsage为25，我们最多可以分配块大小的75％，因为这是PoolChunkList中任何PoolChunk的最大可用量。
        return  (int) (chunkSize * (100L - minUsage) / 100L);
    }
    private static int minUsage0(int value) {
        return max(1, value); //Math.max
    }
   //设置prevList
  void prevList(PoolChunkList<T> prevList) {
          assert this.prevList == null;
          this.prevList = prevList;
      }

3.allocate分配内存

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24


    boolean allocate(PooledByteBuf<T> buf, int reqCapacity, int normCapacity) {
        if (head == null || normCapacity > maxCapacity) {
            // Either this PoolChunkList is empty or the requested capacity is larger then the capacity which can
            // be handled by the PoolChunks that are contained in this PoolChunkList.
            return false;
        }

        for (PoolChunk<T> cur = head;;) {
            long handle = cur.allocate(normCapacity); //申请分配内存
            if (handle < 0) {  //小于零，往下PoolChunk申请分配内存
                cur = cur.next;
                if (cur == null) {
                    return false;
                }
            } else {
                cur.initBuf(buf, handle, reqCapacity); //初始化PooledByteBuf
                if (cur.usage() >= maxUsage) { //chunk 当前使用的百分比大于等于PoolChunkList最大值,删除该chunk，往PoolChunkList下个值添加chunk；
                    remove(cur);
                    nextList.add(cur);
                }
                return true;
            }
        }
    }

a.remove

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14


     private void remove(PoolChunk<T> cur) {
         if (cur == head) {
             head = cur.next;
             if (head != null) {
                 head.prev = null;
             }
         } else {
             PoolChunk<T> next = cur.next;
             cur.prev.next = next;
             if (next != null) {
                 next.prev = cur.prev;
             }
         }
     }

4.free释放内存

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21


    boolean free(PoolChunk<T> chunk, long handle) {
        chunk.free(handle);
        if (chunk.usage() < minUsage) {//chunk 当前使用的百分比小于PoolChunkList最小值,删除该chunk，往PoolChunkList上个值添加chunk；
            remove(chunk);
            // Move the PoolChunk down the PoolChunkList linked-list.
            return move0(chunk);
        }
        return true;
    }

    private boolean move0(PoolChunk<T> chunk) {
        if (prevList == null) {
            // There is no previous PoolChunkList so return false which result in having the PoolChunk destroyed and
            // all memory associated with the PoolChunk will be released.
            //没有先前的PoolChunkList返回false，导致PoolChunk被销毁，并且所有与PoolChunk关联的内存都将被释放
            assert chunk.usage() == 0;
            return false;
        }
        return prevList.move(chunk);
    }

5.add 添加chunk

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21


  void add(PoolChunk<T> chunk) {
        if (chunk.usage() >= maxUsage) {
            nextList.add(chunk);
            return;
        }
        add0(chunk);
    }

    void add0(PoolChunk<T> chunk) {
        chunk.parent = this;
        if (head == null) {
            head = chunk;
            chunk.prev = null;
            chunk.next = null;
        } else {
            chunk.prev = null;
            chunk.next = head;
            head.prev = chunk;
            head = chunk;
        }
    }

6.move 添加chunk

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23


   private boolean move(PoolChunk<T> chunk) {
          assert chunk.usage() < maxUsage;

          if (chunk.usage() < minUsage) {
              // Move the PoolChunk down the PoolChunkList linked-list.
              return move0(chunk);
          }

          // PoolChunk fits into this PoolChunkList, adding it here.
          add0(chunk);
          return true;
      }

      private boolean move0(PoolChunk<T> chunk) {
          if (prevList == null) {
              // There is no previous PoolChunkList so return false which result in having the PoolChunk destroyed and
              // all memory associated with the PoolChunk will be released.
              assert chunk.usage() == 0;
              return false;
          }
          return prevList.move(chunk);
      }

五、PoolArena 源码分析

PoolArena是抽象类，两个实现类HeapArena(堆内存)和DirectArena(直接内存)；

1.数据结构

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36


abstract class PoolArena<T> implements PoolArenaMetric {
    static final boolean HAS_UNSAFE = PlatformDependent.hasUnsafe();

    enum SizeClass {
        Tiny,
        Small,
        Normal
        // 除此之外的请求为Huge
    }
    //Tiny分配固定值数量
    static final int numTinySubpagePools = 512 >>> 4;//32

    final PooledByteBufAllocator parent;

    private final int maxOrder; //chunk相关满二叉树的高度
    final int pageSize;         //page大小
    final int pageShifts;       //pageSize是2幂次方，pageShifts=log2(pageSize),位移大小
    final int chunkSize;        //chunk大小
    final int subpageOverflowMask; //用于判断请求是否为Small/Tiny
    final int numSmallSubpagePools;//small请求的双向链表头个数
    final int directMemoryCacheAlignment;//对齐基准
    final int directMemoryCacheAlignmentMask;//用于对齐内存
    private final PoolSubpage<T>[] tinySubpagePools;//tiny Subpage双向链表
    private final PoolSubpage<T>[] smallSubpagePools;//small Subpage双向链表

    //chunk状态 jemalloc博客有具体说明
    private final PoolChunkList<T> q050;
    private final PoolChunkList<T> q025;
    private final PoolChunkList<T> q000;
    private final PoolChunkList<T> qInit;
    private final PoolChunkList<T> q075;
    private final PoolChunkList<T> q100;

    // 线程缓存数量
    final AtomicInteger numThreadCaches = new AtomicInteger();
 }

2.构造

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54


 protected PoolArena(PooledByteBufAllocator parent, int pageSize,
          int maxOrder, int pageShifts, int chunkSize, int cacheAlignment) {
        this.parent = parent;
        this.pageSize = pageSize;
        this.maxOrder = maxOrder;
        this.pageShifts = pageShifts;
        this.chunkSize = chunkSize;
        directMemoryCacheAlignment = cacheAlignment;
        directMemoryCacheAlignmentMask = cacheAlignment - 1;
        subpageOverflowMask = ~(pageSize - 1);
        tinySubpagePools = newSubpagePoolArray(numTinySubpagePools); // 512 >>> 4
        for (int i = 0; i < tinySubpagePools.length; i ++) {
            tinySubpagePools[i] = newSubpagePoolHead(pageSize); //初始化PoolSubpage的头节点
        }
        //Small分配固定值数量
        numSmallSubpagePools = pageShifts - 9;// 2^9=512
        smallSubpagePools = newSubpagePoolArray(numSmallSubpagePools);
        for (int i = 0; i < smallSubpagePools.length; i ++) {
            smallSubpagePools[i] = newSubpagePoolHead(pageSize); //初始化PoolSubpage的头节点
        }

        //PoolChunkList 状态赋值，状态关联初始化
        q100 = new PoolChunkList<T>(this, null, 100, Integer.MAX_VALUE, chunkSize);
        q075 = new PoolChunkList<T>(this, q100, 75, 100, chunkSize);
        q050 = new PoolChunkList<T>(this, q075, 50, 100, chunkSize);
        q025 = new PoolChunkList<T>(this, q050, 25, 75, chunkSize);
        q000 = new PoolChunkList<T>(this, q025, 1, 50, chunkSize);
        qInit = new PoolChunkList<T>(this, q000, Integer.MIN_VALUE, 25, chunkSize);

        q100.prevList(q075);
        q075.prevList(q050);
        q050.prevList(q025);
        q025.prevList(q000);
        q000.prevList(null);
        qInit.prevList(qInit);

    }
   private PoolSubpage<T> newSubpagePoolHead(int pageSize) {
        PoolSubpage<T> head = new PoolSubpage<T>(pageSize);
        head.prev = head;
        head.next = head;
        return head;
    }
    @SuppressWarnings("unchecked")
    private PoolSubpage<T>[] newSubpagePoolArray(int size) {
        return new PoolSubpage[size];
    }
    private PoolSubpage<T> newSubpagePoolHead(int pageSize) {
        PoolSubpage<T> head = new PoolSubpage<T>(pageSize);
        head.prev = head;
        head.next = head;
        return head;
    }


2.allocate 分配内存

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97


    PooledByteBuf<T> allocate(PoolThreadCache cache, int reqCapacity, int maxCapacity) {
        PooledByteBuf<T> buf = newByteBuf(maxCapacity); //newByteBufy由子类实现
        allocate(cache, buf, reqCapacity);
        return buf;
    }
  private void allocate(PoolThreadCache cache, PooledByteBuf<T> buf, final int reqCapacity) {
        final int normCapacity = normalizeCapacity(reqCapacity);//获取计算需要分配内存值
        if (isTinyOrSmall(normCapacity)) { // capacity < pageSize
            int tableIdx;
            PoolSubpage<T>[] table;
            boolean tiny = isTiny(normCapacity);
            if (tiny) { // < 512
                if (cache.allocateTiny(this, buf, reqCapacity, normCapacity)) { //PoolThreadCache缓存中获取，具体后面介绍
                    // was able to allocate out of the cache so move on
                    return;
                }
                tableIdx = tinyIdx(normCapacity);
                table = tinySubpagePools;
            } else {
                if (cache.allocateSmall(this, buf, reqCapacity, normCapacity)) {//PoolThreadCache缓存中获取，具体后面介绍
                    // was able to allocate out of the cache so move on
                    return;
                }
                tableIdx = smallIdx(normCapacity);
                table = smallSubpagePools;
            }

            final PoolSubpage<T> head = table[tableIdx];

            //从tinySubpagePools和smallSubpagePools中获取要分配内存
            synchronized (head) {
                final PoolSubpage<T> s = head.next;
                if (s != head) {   //
                    assert s.doNotDestroy && s.elemSize == normCapacity;
                    long handle = s.allocate();
                    assert handle >= 0;
                    s.chunk.initBufWithSubpage(buf, handle, reqCapacity);
                    incTinySmallAllocation(tiny); //统计创建Tiny或者Small数量
                    return;
                }
            }
            synchronized (this) {
                allocateNormal(buf, reqCapacity, normCapacity);//从chunk分配内存
            }

            incTinySmallAllocation(tiny);
            return;
        }
        if (normCapacity <= chunkSize) {
            if (cache.allocateNormal(this, buf, reqCapacity, normCapacity)) {
                // was able to allocate out of the cache so move on
                return;
            }
            synchronized (this) {
                allocateNormal(buf, reqCapacity, normCapacity);
                ++allocationsNormal;
            }
        } else {
            // Huge allocations are never served via the cache so just call allocateHuge
            //巨大的分配永远不会通过内存池服务，所以只需调用allocateHuge
            allocateHuge(buf, reqCapacity);
        }
    }

   // capacity < pageSize  subpageOverflowMask=～(pageSize-1)
   boolean isTinyOrSmall(int normCapacity) {
       return (normCapacity & subpageOverflowMask) == 0;
   }

   // normCapacity < 512  0xFFFFFE00=-512
   static boolean isTiny(int normCapacity) {
       return (normCapacity & 0xFFFFFE00) == 0;
   }

   //获取tinySubpagePools数组下标值
   static int tinyIdx(int normCapacity) {
       return normCapacity >>> 4;
   }

   //获取smallSubpagePools数组下标值
   static int smallIdx(int normCapacity) {
       int tableIdx = 0;
       int i = normCapacity >>> 10; //normCapacity/512
       while (i != 0) {
           i >>>= 1;   //i/2
           tableIdx ++;
       }
       return tableIdx;
   }

    private void incTinySmallAllocation(boolean tiny) {
        if (tiny) {
            allocationsTiny.increment();
        } else {
            allocationsSmall.increment();
        }
    }

3.normalizeCapacity 获取计算需要分配内存值；

两种情况大于等于512情况和小于512情况大于等于512:大于reqCapacity值最近2幂次方值小于512情况:reqCapacity的值在（1-(521»4)=32）«4范围内，一共32个

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51


  int normalizeCapacity(int reqCapacity) {
        if (reqCapacity < 0) {
            throw new IllegalArgumentException("capacity: " + reqCapacity + " (expected: 0+)");
        }

        if (reqCapacity >= chunkSize) {
            return directMemoryCacheAlignment == 0 ? reqCapacity : alignCapacity(reqCapacity);
        }

        if (!isTiny(reqCapacity)) { // >= 512
            // Doubled

            int normalizedCapacity = reqCapacity;
            normalizedCapacity --;
            //这块代码 最高位1后面都要补1
            //例如 normalizedCapacity=6 0110 转化normalizedCapacity=7 0111
            normalizedCapacity |= normalizedCapacity >>>  1;
            normalizedCapacity |= normalizedCapacity >>>  2;
            normalizedCapacity |= normalizedCapacity >>>  4;
            normalizedCapacity |= normalizedCapacity >>>  8;
            normalizedCapacity |= normalizedCapacity >>> 16;
            //最后加1，能获取normalizedCapacity最近2幂次方
            normalizedCapacity ++;

            if (normalizedCapacity < 0) { //normalizedCapacity达到最大
                normalizedCapacity >>>= 1;
            }
            assert directMemoryCacheAlignment == 0 || (normalizedCapacity & directMemoryCacheAlignmentMask) == 0;

            return normalizedCapacity;
        }

        if (directMemoryCacheAlignment > 0) {
            return alignCapacity(reqCapacity);
        }

        // Quantum-spacedb
        if ((reqCapacity & 15) == 0) {//reqCapacity的值在（1-(512>>4)=32）<<4范围内,说白就是16倍数而已，一共31个不包括512
            return reqCapacity;
        }

        return (reqCapacity & ~15) + 16;//把reqCapacity最后四位补零在加16，在上面范围内
    }
    //0xFFFFFE00=-512 判断是否小于512
   static boolean isTiny(int normCapacity) {
       return (normCapacity & 0xFFFFFE00) == 0;
   }
   int alignCapacity(int reqCapacity) {
       int delta = reqCapacity & directMemoryCacheAlignmentMask;
       return delta == 0 ? reqCapacity : reqCapacity + directMemoryCacheAlignment - delta;
   }

4.allocateNormal 从chunk中分配内存

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18


    private void allocateNormal(PooledByteBuf<T> buf, int reqCapacity, int normCapacity) {
        //为什么是从q050开始尝试分配呢？
        // q050是内存占用50%~100%的chunk，猜测是希望能够提高整个应用的内存使用率，因为这样大部分情况下会使用q050的内存，
        //这样在内存使用不是很多的情况下一些利用率低(<50%)的chunk慢慢就会淘汰出去，最终被回收。

        if (q050.allocate(buf, reqCapacity, normCapacity) || q025.allocate(buf, reqCapacity, normCapacity) ||
            q000.allocate(buf, reqCapacity, normCapacity) || qInit.allocate(buf, reqCapacity, normCapacity) ||
            q075.allocate(buf, reqCapacity, normCapacity)) {
            return;
        }

        // Add a new chunk. 创建新chunk
        PoolChunk<T> c = newChunk(pageSize, maxOrder, pageShifts, chunkSize);//抽象方法子类实现
        long handle = c.allocate(normCapacity);
        assert handle > 0;
        c.initBuf(buf, handle, reqCapacity);
        qInit.add(c); //第一次创建添加到qInit状态中
    }

5.allocateHuge 分配大小大于chunkSize不通过内存池创建

1
2
3
4
5
6


    private void allocateHuge(PooledByteBuf<T> buf, int reqCapacity) {
        PoolChunk<T> chunk = newUnpooledChunk(reqCapacity);//子类实现
        activeBytesHuge.add(chunk.chunkSize()); //统计
        buf.initUnpooled(chunk, reqCapacity);
        allocationsHuge.increment();            //统计
    }

6.free 释放内存

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48


    void free(PoolChunk<T> chunk, long handle, int normCapacity, PoolThreadCache cache) {
        if (chunk.unpooled) {
            int size = chunk.chunkSize();
            destroyChunk(chunk);   //子类去实现
            activeBytesHuge.add(-size);
            deallocationsHuge.increment();
        } else {
            SizeClass sizeClass = sizeClass(normCapacity);
            if (cache != null && cache.add(this, chunk, handle, normCapacity, sizeClass)) { //PoolThreadCache操作
                // cached so not free it.
                //缓存，所以不释放它。
                return;
            }

            freeChunk(chunk, handle, sizeClass);
        }
    }

   private SizeClass sizeClass(int normCapacity) {
       if (!isTinyOrSmall(normCapacity)) {
           return SizeClass.Normal;
       }
       return isTiny(normCapacity) ? SizeClass.Tiny : SizeClass.Small;
   }

   void freeChunk(PoolChunk<T> chunk, long handle, SizeClass sizeClass) {
       final boolean destroyChunk;
       synchronized (this) {
           switch (sizeClass) {
           case Normal:
               ++deallocationsNormal;
               break;
           case Small:
               ++deallocationsSmall;
               break;
           case Tiny:
               ++deallocationsTiny;
               break;
           default:
               throw new Error();
           }
           destroyChunk = !chunk.parent.free(chunk, handle);//chunk.parent ChunkList操作free
       }
       if (destroyChunk) {//ChunkList操作free返回false才调用destroyChunk
           // destroyChunk not need to be called while holding the synchronized lock.
           destroyChunk(chunk); //子类去实现
       }
   }

7.findSubpagePoolHead 查询subpagePool的头节点

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19


    PoolSubpage<T> findSubpagePoolHead(int elemSize) {
        int tableIdx;
        PoolSubpage<T>[] table;
        if (isTiny(elemSize)) { // < 512
            tableIdx = elemSize >>> 4;
            table = tinySubpagePools;
        } else {
            tableIdx = 0;
            elemSize >>>= 10;
            while (elemSize != 0) {
                elemSize >>>= 1;
                tableIdx ++;
            }
            table = smallSubpagePools;
        }

        return table[tableIdx];
    }

8.reallocate 重新分配内存

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42


    void reallocate(PooledByteBuf<T> buf, int newCapacity, boolean freeOldMemory) {
        if (newCapacity < 0 || newCapacity > buf.maxCapacity()) {
            throw new IllegalArgumentException("newCapacity: " + newCapacity);
        }

        int oldCapacity = buf.length;
        if (oldCapacity == newCapacity) {
            return;
        }

        PoolChunk<T> oldChunk = buf.chunk;
        long oldHandle = buf.handle;
        T oldMemory = buf.memory;
        int oldOffset = buf.offset;
        int oldMaxLength = buf.maxLength;
        int readerIndex = buf.readerIndex();
        int writerIndex = buf.writerIndex();

        allocate(parent.threadCache(), buf, newCapacity); //分配新内存大小
        if (newCapacity > oldCapacity) {
            memoryCopy(
                    oldMemory, oldOffset,
                    buf.memory, buf.offset, oldCapacity); //抽象方法，子类去实现
        } else if (newCapacity < oldCapacity) {
            if (readerIndex < newCapacity) {
                if (writerIndex > newCapacity) {
                    writerIndex = newCapacity;
                }
                memoryCopy(
                        oldMemory, oldOffset + readerIndex,
                        buf.memory, buf.offset + readerIndex, writerIndex - readerIndex);
            } else {
                readerIndex = writerIndex = newCapacity;
            }
        }

        buf.setIndex(readerIndex, writerIndex);

        if (freeOldMemory) {
            free(oldChunk, oldHandle, oldMaxLength, buf.cache);//释放旧内存
        }
    }

9.子类实现HeapArena和DirectArena

不做具体分析；

1
2
3
4
5
6


    //子类实现抽象方法
   protected abstract PoolChunk<T> newChunk(int pageSize, int maxOrder, int pageShifts, int chunkSize);
   protected abstract PoolChunk<T> newUnpooledChunk(int capacity);
   protected abstract PooledByteBuf<T> newByteBuf(int maxCapacity);
   protected abstract void memoryCopy(T src, int srcOffset, T dst, int dstOffset, int length);
   protected abstract void destroyChunk(PoolChunk<T> chunk);

六、PoolThreadCache 源码分析

1.数据结构

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26


final class PoolThreadCache {

    private static final InternalLogger logger = InternalLoggerFactory.getInstance(PoolThreadCache.class);

    //类型不同PoolArena
    final PoolArena<byte[]> heapArena;
    final PoolArena<ByteBuffer> directArena;

    // Hold the caches for the different size classes, which are tiny, small and normal.
    //大小不同的缓存
    private final MemoryRegionCache<byte[]>[] tinySubPageHeapCaches;
    private final MemoryRegionCache<byte[]>[] smallSubPageHeapCaches;
    private final MemoryRegionCache<ByteBuffer>[] tinySubPageDirectCaches;
    private final MemoryRegionCache<ByteBuffer>[] smallSubPageDirectCaches;
    private final MemoryRegionCache<byte[]>[] normalHeapCaches;
    private final MemoryRegionCache<ByteBuffer>[] normalDirectCaches;

    // Used for bitshifting when calculate the index of normal caches later
    //稍后计算正常高速缓存的索引时用于位移
    private final int numShiftsNormalDirect;
    private final int numShiftsNormalHeap;
    //释放队列缓存门槛次数
    private final int freeSweepAllocationThreshold;
    //缓存分配次数
    private int allocations;
}

2.MemoryRegionCache源码分析

MemoryRegionCache是抽象类，有SubPageMemoryRegionCache和NormalMemoryRegionCache实现

(1).数据结构

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23


  private abstract static class MemoryRegionCache<T> {
         private final int size;   //申请队列大小
         private final Queue<Entry<T>> queue;//调用jctools中队列
         private final SizeClass sizeClass;  //分配类型，Tiny,Small,Normal
         private int allocations;   //分配数量统计

       //运用对象池
       static final class Entry<T> {
           final Handle<Entry<?>> recyclerHandle;
           PoolChunk<T> chunk;
           long handle = -1;

           Entry(Handle<Entry<?>> recyclerHandle) {
               this.recyclerHandle = recyclerHandle;
           }

           void recycle() {
               chunk = null;
               handle = -1;
               recyclerHandle.recycle(this);
           }
       }
}

(2).构造

1
2
3
4
5


     MemoryRegionCache(int size, SizeClass sizeClass) {
            this.size = MathUtil.safeFindNextPositivePowerOfTwo(size);//最终结果1<<log2(size-1)
            queue = PlatformDependent.newFixedMpscQueue(this.size);   //hasUnsafe() ? new MpscArrayQueue<T>(capacity) : new MpscAtomicArrayQueue<T>(capacity);
            this.sizeClass = sizeClass;
        }

(3).add 添加缓存

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26


        public final boolean add(PoolChunk<T> chunk, long handle) {
            Entry<T> entry = newEntry(chunk, handle);
            boolean queued = queue.offer(entry);
            if (!queued) {
                //如果不可能缓存该块，则立即回收该entry。
                entry.recycle();
            }

            return queued;
        }
  private static Entry newEntry(PoolChunk<?> chunk, long handle) {
           Entry entry = RECYCLER.get();
           entry.chunk = chunk;
           entry.handle = handle;
           return entry;
       }

       //Recycler后面主体做介绍
       @SuppressWarnings("rawtypes")
       private static final Recycler<Entry> RECYCLER = new Recycler<Entry>() {
           @SuppressWarnings("unchecked")
           @Override
           protected Entry newObject(Handle<Entry> handle) {
               return new Entry(handle);
           }
       };

(4).从缓存中分配内存

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12


        public final boolean allocate(PooledByteBuf<T> buf, int reqCapacity) {
            Entry<T> entry = queue.poll();
            if (entry == null) {
                return false;
            }
            initBuf(entry.chunk, entry.handle, buf, reqCapacity);//抽象类
            entry.recycle(); //回收
            //allocations不是线程安全的，同一个线程始终调用。
            ++ allocations;
            return true;
        }

(5).从缓存队列中释放所有内存

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27


        public final int free() {
            return free(Integer.MAX_VALUE);
        }

        private int free(int max) {
            int numFreed = 0;
            for (; numFreed < max; numFreed++) {
                Entry<T> entry = queue.poll();
                if (entry != null) {
                    freeEntry(entry);
                } else {
                    // all cleared
                    return numFreed;
                }
            }
            return numFreed;
        }
   @SuppressWarnings({ "unchecked", "rawtypes" })
       private  void freeEntry(Entry entry) {
           PoolChunk chunk = entry.chunk;
           long handle = entry.handle;

           //现在回收所以PoolChunk可以被GC化
           entry.recycle();
           //freeChunk
           chunk.arena.freeChunk(chunk, handle, sizeClass);
       }

(5).trim如果分配不够频繁，则释放缓存的PoolChunk。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12


        /**
         * 如果分配不够频繁，则释放缓存的PoolChunk。
         */
        public final void trim() {
            int free = size - allocations;
            allocations = 0;

            // We not even allocated all the number that are
            if (free > 0) {
                free(free);
            }
        }

(6).子类实现SubPageMemoryRegionCache和NormalMemoryRegionCache

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23


    private static final class SubPageMemoryRegionCache<T> extends MemoryRegionCache<T> {
        SubPageMemoryRegionCache(int size, SizeClass sizeClass) {
            super(size, sizeClass);
        }

        @Override
        protected void initBuf(
                PoolChunk<T> chunk, long handle, PooledByteBuf<T> buf, int reqCapacity) {
            chunk.initBufWithSubpage(buf, handle, reqCapacity);
        }
    }

    private static final class NormalMemoryRegionCache<T> extends MemoryRegionCache<T> {
        NormalMemoryRegionCache(int size) {
            super(size, SizeClass.Normal);
        }

        @Override
        protected void initBuf(
                PoolChunk<T> chunk, long handle, PooledByteBuf<T> buf, int reqCapacity) {
            chunk.initBuf(buf, handle, reqCapacity);
        }
    }

3.PoolThreadCache构造

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88



   PoolThreadCache(PoolArena<byte[]> heapArena, PoolArena<ByteBuffer> directArena,
                   int tinyCacheSize, int smallCacheSize, int normalCacheSize,
                   int maxCachedBufferCapacity, int freeSweepAllocationThreshold) {
       ...
       this.freeSweepAllocationThreshold = freeSweepAllocationThreshold;
       this.heapArena = heapArena;
       this.directArena = directArena;
       if (directArena != null) { //直接内存初始化
           tinySubPageDirectCaches = createSubPageCaches(
                   tinyCacheSize, PoolArena.numTinySubpagePools, SizeClass.Tiny); //创建Tiny缓存
           smallSubPageDirectCaches = createSubPageCaches(
                   smallCacheSize, directArena.numSmallSubpagePools, SizeClass.Small);//创建small缓存

           numShiftsNormalDirect = log2(directArena.pageSize);
           normalDirectCaches = createNormalCaches(
                   normalCacheSize, maxCachedBufferCapacity, directArena);               //创建normal缓存

           directArena.numThreadCaches.getAndIncrement();
       } else {
           // No directArea is configured so just null out all caches
           tinySubPageDirectCaches = null;
           smallSubPageDirectCaches = null;
           normalDirectCaches = null;
           numShiftsNormalDirect = -1;
       }
       if (heapArena != null) {  //堆内存初始化缓存数据
           // Create the caches for the heap allocations
           tinySubPageHeapCaches = createSubPageCaches(
                   tinyCacheSize, PoolArena.numTinySubpagePools, SizeClass.Tiny);
           smallSubPageHeapCaches = createSubPageCaches(
                   smallCacheSize, heapArena.numSmallSubpagePools, SizeClass.Small);

           numShiftsNormalHeap = log2(heapArena.pageSize);
           normalHeapCaches = createNormalCaches(
                   normalCacheSize, maxCachedBufferCapacity, heapArena);

           heapArena.numThreadCaches.getAndIncrement();
       } else {
           // No heapArea is configured so just null out all caches
           tinySubPageHeapCaches = null;
           smallSubPageHeapCaches = null;
           normalHeapCaches = null;
           numShiftsNormalHeap = -1;
       }
    ...
   }

   private static <T> MemoryRegionCache<T>[] createSubPageCaches(
           int cacheSize, int numCaches, SizeClass sizeClass) {
       if (cacheSize > 0 && numCaches > 0) {
           @SuppressWarnings("unchecked")
           MemoryRegionCache<T>[] cache = new MemoryRegionCache[numCaches];
           for (int i = 0; i < cache.length; i++) {
               // TODO: maybe use cacheSize / cache.length
               cache[i] = new SubPageMemoryRegionCache<T>(cacheSize, sizeClass);
           }
           return cache;
       } else {
           return null;
       }
   }

   private static <T> MemoryRegionCache<T>[] createNormalCaches(
           int cacheSize, int maxCachedBufferCapacity, PoolArena<T> area) {
       if (cacheSize > 0 && maxCachedBufferCapacity > 0) {
           int max = Math.min(area.chunkSize, maxCachedBufferCapacity);
           int arraySize = Math.max(1, log2(max / area.pageSize) + 1);

           @SuppressWarnings("unchecked")
           MemoryRegionCache<T>[] cache = new MemoryRegionCache[arraySize];
           for (int i = 0; i < cache.length; i++) {
               cache[i] = new NormalMemoryRegionCache<T>(cacheSize);
           }
           return cache;
       } else {
           return null;
       }
   }

   private static int log2(int val) {
       int res = 0;
       while (val > 1) {
           val >>= 1;
           res++;
       }
       return res;
   }

说白其次都是操作MemoryRegionCache类进行缓存；下面所用操作都是MemoryRegionCache

4.添加缓存

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26



   /**
    * Add {@link PoolChunk} and {@code handle} to the cache if there is enough room.
    * Returns {@code true} if it fit into the cache {@code false} otherwise.
    */
   @SuppressWarnings({ "unchecked", "rawtypes" })
   boolean add(PoolArena<?> area, PoolChunk chunk, long handle, int normCapacity, SizeClass sizeClass) {
       MemoryRegionCache<?> cache = cache(area, normCapacity, sizeClass);
       if (cache == null) {
           return false;
       }
       return cache.add(chunk, handle);
   }

   private MemoryRegionCache<?> cache(PoolArena<?> area, int normCapacity, SizeClass sizeClass) {
       switch (sizeClass) {
       case Normal:
           return cacheForNormal(area, normCapacity);
       case Small:
           return cacheForSmall(area, normCapacity);
       case Tiny:
           return cacheForTiny(area, normCapacity);
       default:
           throw new Error();
       }
   }

5.从缓存中分获取分配内存

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35


 /**
     * Try to allocate a tiny buffer out of the cache. Returns {@code true} if successful {@code false} otherwise
     */
    boolean allocateTiny(PoolArena<?> area, PooledByteBuf<?> buf, int reqCapacity, int normCapacity) {
        return allocate(cacheForTiny(area, normCapacity), buf, reqCapacity);
    }

    /**
     * Try to allocate a small buffer out of the cache. Returns {@code true} if successful {@code false} otherwise
     */
    boolean allocateSmall(PoolArena<?> area, PooledByteBuf<?> buf, int reqCapacity, int normCapacity) {
        return allocate(cacheForSmall(area, normCapacity), buf, reqCapacity);
    }

    /**
     * Try to allocate a small buffer out of the cache. Returns {@code true} if successful {@code false} otherwise
     */
    boolean allocateNormal(PoolArena<?> area, PooledByteBuf<?> buf, int reqCapacity, int normCapacity) {
        return allocate(cacheForNormal(area, normCapacity), buf, reqCapacity);
    }

    @SuppressWarnings({ "unchecked", "rawtypes" })
    private boolean allocate(MemoryRegionCache<?> cache, PooledByteBuf buf, int reqCapacity) {
        if (cache == null) {
            // no cache found so just return false here
            return false;
        }
        boolean allocated = cache.allocate(buf, reqCapacity);
        if (++ allocations >= freeSweepAllocationThreshold) { //门槛次数做判断，释放内存
            allocations = 0;
            trim();
        }
        return allocated;
    }


5.free释放缓存内存

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35


    void free() {
        int numFreed = free(tinySubPageDirectCaches) +
                free(smallSubPageDirectCaches) +
                free(normalDirectCaches) +
                free(tinySubPageHeapCaches) +
                free(smallSubPageHeapCaches) +
                free(normalHeapCaches);

        if (directArena != null) {
            directArena.numThreadCaches.getAndDecrement();
        }

        if (heapArena != null) {
            heapArena.numThreadCaches.getAndDecrement();
        }
    }

    private static int free(MemoryRegionCache<?>[] caches) {
        if (caches == null) {
            return 0;
        }

        int numFreed = 0;
        for (MemoryRegionCache<?> c: caches) {
            numFreed += free(c);
        }
        return numFreed;
    }

    private static int free(MemoryRegionCache<?> cache) {
        if (cache == null) {
            return 0;
        }
        return cache.free();
    }

6.trim释放缓存内存

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25


    void trim() {
        trim(tinySubPageDirectCaches);
        trim(smallSubPageDirectCaches);
        trim(normalDirectCaches);
        trim(tinySubPageHeapCaches);
        trim(smallSubPageHeapCaches);
        trim(normalHeapCaches);
    }

    private static void trim(MemoryRegionCache<?>[] caches) {
        if (caches == null) {
            return;
        }
        for (MemoryRegionCache<?> c: caches) {
            trim(c);
        }
    }

    private static void trim(MemoryRegionCache<?> cache) {
        if (cache == null) {
            return;
        }
        cache.trim();
    }

七、PooledByteBuf 源码分析

PooledByteBuf是抽象类

1.数据结构

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14


abstract class PooledByteBuf<T> extends AbstractReferenceCountedByteBuf {

    private final Recycler.Handle<PooledByteBuf<T>> recyclerHandle;

    protected PoolChunk<T> chunk; //chunk
    protected long handle;        //chunk 定位值
    protected T memory;           //实际内存区域
    protected int offset;         //偏移量
    protected int length;         //内存大小
    int maxLength;                //最大长度
    PoolThreadCache cache;        //内存池缓存
    private ByteBuffer tmpNioBuf;
    private ByteBufAllocator allocator;
}

2.构造

1
2
3
4


    protected PooledByteBuf(Recycler.Handle<? extends PooledByteBuf<T>> recyclerHandle, int maxCapacity) {
        super(maxCapacity);
        this.recyclerHandle = (Handle<PooledByteBuf<T>>) recyclerHandle;
    }

3.init 初始化，在内存池中分配内存调用

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22


 void init(PoolChunk<T> chunk, long handle, int offset, int length, int maxLength, PoolThreadCache cache) {
        init0(chunk, handle, offset, length, maxLength, cache);
    }
    //没用到内存池初始化
    void initUnpooled(PoolChunk<T> chunk, int length) {
        init0(chunk, 0, chunk.offset, length, length, null);
    }

    private void init0(PoolChunk<T> chunk, long handle, int offset, int length, int maxLength, PoolThreadCache cache) {
        assert handle >= 0;
        assert chunk != null;

        this.chunk = chunk;
        memory = chunk.memory;
        allocator = chunk.arena.parent;
        this.cache = cache;
        this.handle = handle;
        this.offset = offset;
        this.length = length;
        this.maxLength = maxLength;
        tmpNioBuf = null;
    }

4.capacity 重新分配新容量

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38


    @Override
    public final ByteBuf capacity(int newCapacity) {
        checkNewCapacity(newCapacity);

        // If the request capacity does not require reallocation, just update the length of the memory.
        if (chunk.unpooled) {
            if (newCapacity == length) {
                return this;
            }
        } else {
            if (newCapacity > length) {      //扩容
                if (newCapacity <= maxLength) { //小于maxLength 不用在重新分配容量
                    length = newCapacity;
                    return this;
                }
            } else if (newCapacity < length) {//缩小容量
                if (newCapacity > maxLength >>> 1) {//小于maxLength/2，
                    if (maxLength <= 512) {         //判断maxLength是否小于等于512
                        if (newCapacity > maxLength - 16) {
                            length = newCapacity;
                            setIndex(Math.min(readerIndex(), newCapacity), Math.min(writerIndex(), newCapacity));
                            return this;
                        }
                    } else { // > 512 (i.e. >= 1024)
                        length = newCapacity;
                        setIndex(Math.min(readerIndex(), newCapacity), Math.min(writerIndex(), newCapacity));
                        return this;
                    }
                }
            } else {
                return this;
            }
        }

        // Reallocation required. 重新分配内存大小
        chunk.arena.reallocate(this, newCapacity, true);
        return this;
    }

文章目录

一、简介

1.核心类介绍

二、PoolChunk 源码分析

1.是怎么管理page的集合呢？

2.数据结构

3.构造

4.分配(allocate)

a.allocateRun分配大于等于pageSize内存

b.allocateNode获取节点下标值allocateNode

c.更新父节点以及追加到根节点的高度值

5.free释放内存分两种大于等page的大小以及小于page;分配逻辑也不同，释放也分两种；

a.释放内存更新父节点以及追加到根节点的高度值

6.initBuf初始化PooledByteBuf

三、PoolSubpage 源码分析

1.数据结构

2.构造

3.init 重新构建elemSize大小块

4.PoolChunk#allocateSubpage分配小于pageSize内存创建或者重构PoolSubpage

5.allocate分配内存

a.查找可以分配内存getNextAvail

6.free释放内存

7.initBufWithSubpage

四、PoolChunkList 源码分析

1.数据结构

2.构造

3.allocate分配内存

a.remove

4.free释放内存

5.add 添加chunk

6.move 添加chunk

五、PoolArena 源码分析

1.数据结构

2.构造

2.allocate 分配内存

3.normalizeCapacity 获取计算需要分配内存值；

4.allocateNormal 从chunk中分配内存

5.allocateHuge 分配大小大于chunkSize不通过内存池创建

6.free 释放内存

7.findSubpagePoolHead 查询subpagePool的头节点

8.reallocate 重新分配内存

9.子类实现HeapArena和DirectArena

六、PoolThreadCache 源码分析

1.数据结构

2.MemoryRegionCache源码分析

(1).数据结构

(2).构造

(3).add 添加缓存

(4).从缓存中分配内存

(5).从缓存队列中释放所有内存

(5).trim如果分配不够频繁，则释放缓存的PoolChunk。

(6).子类实现SubPageMemoryRegionCache和NormalMemoryRegionCache

3.PoolThreadCache构造

4.添加缓存

5.从缓存中分获取分配内存

5.free释放缓存内存

6.trim释放缓存内存

七、PooledByteBuf 源码分析

1.数据结构

2.构造

3.init 初始化，在内存池中分配内存调用

4.capacity 重新分配新容量
