ConcurrentHashMap源码分析

简介

  ConcurrentHashMap是一种线程安全的HashMap。相对于HashTable和Collections.synchronizedMap(),ConcurrentHashMap具有更好的性能和伸缩性, 是由于其使用了分段锁的策略,将内部数据分为多个段,每个段单独加锁,而不是整个HashMap加锁,这样能减少很多不必要的锁争用。

一、ConcurrentHashMap 内部数据结构

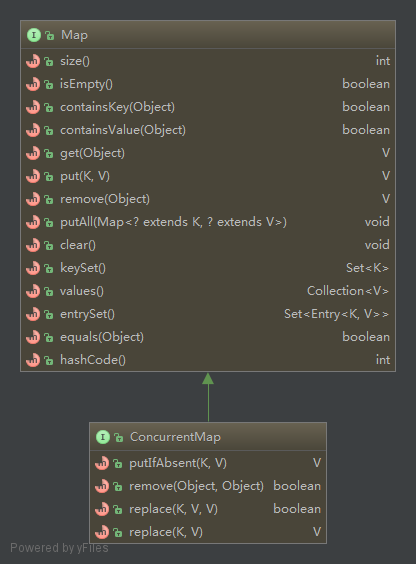

1.ConcurrentMap接口

ConcurrentHashMap继承ConcurrentMap接口

2.HashEntry

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
    /**
     * ConcurrentHashMap list entry. Note that this is never exported
     * out as a user-visible Map.Entry.
     * ConcurrentHashMap key-value值链表
     */
    static final class HashEntry<K,V> {
        final int hash;
        final K key;
        volatile V value;
        volatile HashEntry<K,V> next;

        HashEntry(int hash, K key, V value, HashEntry<K,V> next) {
            this.hash = hash;
            this.key = key;
            this.value = value;
            this.next = next;
        }

        /**
         * Sets next field with volatile write semantics.  (See above
         * about use of putOrderedObject.)
         * 设置下一个具有volatile写语义的字段。(putOrderedObject 保证有序/延迟可见性,数据保存本地线程,过几纳秒更新主内存中)
         */
        final void setNext(HashEntry<K,V> n) {
            UNSAFE.putOrderedObject(this, nextOffset, n);
        }

        // Unsafe mechanics
        static final sun.misc.Unsafe UNSAFE;
        static final long nextOffset;
        static {
            try {
                UNSAFE = sun.misc.Unsafe.getUnsafe();
                Class k = HashEntry.class;
                nextOffset = UNSAFE.objectFieldOffset
                    (k.getDeclaredField("next"));
            } catch (Exception e) {
                throw new Error(e);
            }
        }
    }

2.Segment

(1).Segment内部结构实现

Segment 继承重入锁(ReentrantLock),具有锁特性。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
   /**
     * Segments are specialized versions of hash tables.  This
     * subclasses from ReentrantLock opportunistically, just to
     * simplify some locking and avoid separate construction.
     */
    static final class Segment<K,V> extends ReentrantLock implements Serializable {
        /*
         * Segments maintain a table of entry lists that are always
         * kept in a consistent state, so can be read (via volatile
         * reads of segments and tables) without locking.  This
         * requires replicating nodes when necessary during table
         * resizing, so the old lists can be traversed by readers
         * still using old version of table.
         *
         * This class defines only mutative methods requiring locking.
         * Except as noted, the methods of this class perform the
         * per-segment versions of ConcurrentHashMap methods.  (Other
         * methods are integrated directly into ConcurrentHashMap
         * methods.) These mutative methods use a form of controlled
         * spinning on contention via methods scanAndLock and
         * scanAndLockForPut. These intersperse tryLocks with
         * traversals to locate nodes.  The main benefit is to absorb
         * cache misses (which are very common for hash tables) while
         * obtaining locks so that traversal is faster once
         * acquired. We do not actually use the found nodes since they
         * must be re-acquired under lock anyway to ensure sequential
         * consistency of updates (and in any case may be undetectably
         * stale), but they will normally be much faster to re-locate.
         * Also, scanAndLockForPut speculatively creates a fresh node
         * to use in put if no node is found.
         */

        private static final long serialVersionUID = 2249069246763182397L;

        /**
         * The maximum number of times to tryLock in a prescan before
         * possibly blocking on acquire in preparation for a locked
         * segment operation. On multiprocessors, using a bounded
         * number of retries maintains cache acquired while locating
         * nodes.
         * 在预先扫描tryLock的最大次数,然后可能会阻止获取以准备锁定的段操作。
         * 在多处理器上,使用有限数量的重试来维护在定位节点时获取的缓存。
         */
        static final int MAX_SCAN_RETRIES =
            Runtime.getRuntime().availableProcessors() > 1 ? 64 : 1;

        /**
         * The per-segment table. Elements are accessed via
         * entryAt/setEntryAt providing volatile semantics.
         * 每个段表。元素通过在提供volatile语义的entryAt/setEntryAt访问
         */
        transient volatile HashEntry<K,V>[] table;

        /**
         * The number of elements. Accessed only either within locks
         * or among other volatile reads that maintain visibility.
         * 元素的个数
         * 另一个重要角色就是其他操作会利用count的volatile读写来保证可见性,避免使用锁。
         */
        transient int count;

        /**
         * The total number of mutative operations in this segment.
         * Even though this may overflows 32 bits, it provides
         * sufficient accuracy for stability checks in CHM isEmpty()
         * and size() methods.  Accessed only either within locks or
         * among other volatile reads that maintain visibility.
         * 统计跟踪修改,用来保证一些批量操作的一致性。
         * 比如统计所有segment元素个数时,如果统计过程发现modCount变化
         * 那么需要重试。
         */
        transient int modCount;

        /**
         * The table is rehashed when its size exceeds this threshold.
         * (The value of this field is always <tt>(int)(capacity *
         * loadFactor)</tt>.)
         * 当哈希表的容量超过了这个阀值,表会扩容,里面的元素会重新散列。
         * 这个值一般是:capacity * loadFactor
         */
        transient int threshold;

        /**
         * The load factor for the hash table.  Even though this value
         * is same for all segments, it is replicated to avoid needing
         * links to outer object.
         * @serial
         * 哈希表的加载因子。
         */
        final float loadFactor;

        Segment(float lf, int threshold, HashEntry<K,V>[] tab) {
            this.loadFactor = lf;
            this.threshold = threshold;
            this.table = tab;
        }

    }

(2).Segment put添加元素

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
     final V put(K key, int hash, V value, boolean onlyIfAbsent) {
            HashEntry<K,V> node = tryLock() ? null :
                scanAndLockForPut(key, hash, value);
            V oldValue;
            try {
                HashEntry<K,V>[] tab = table;
                int index = (tab.length - 1) & hash; // 获取下标
                HashEntry<K,V> first = entryAt(tab, index); //获取Segment的table[index]数组第一个HashEntry
                for (HashEntry<K,V> e = first;;) { // 完成 HashEntry链表拼接,hash(key)相同(说明hash发生碰撞),key不相同。
                    if (e != null) {
                        K k;
                        if ((k = e.key) == key ||
                            (e.hash == hash && key.equals(k))) { // 判断key是否相等,
                            oldValue = e.value;
                            if (!onlyIfAbsent) { //判断是否有相同key,替换旧值
                                e.value = value;
                                ++modCount;
                            }
                            break;
                        }
                        e = e.next;
                    }
                    else {
                        if (node != null)
                            node.setNext(first);//拼接next
                        else
                            node = new HashEntry<K,V>(hash, key, value, first);
                        int c = count + 1;
                        if (c > threshold && tab.length < MAXIMUM_CAPACITY)
                            rehash(node); // 扩容
                        else
                            setEntryAt(tab, index, node);//volatile写语义 赋值数组下标值
                        ++modCount;
                        count = c;
                        oldValue = null;
                        break;
                    }
                }
            } finally {
                unlock();
            }
            return oldValue;
        }
       /**
         * Scans for a node containing given key while trying to
         * acquire lock, creating and returning one if not found. Upon
         * return, guarantees that lock is held. UNlike in most
         * methods, calls to method equals are not screened: Since
         * traversal speed doesn't matter, we might as well help warm
         * up the associated code and accesses as well.
         *扫描一个包含给定键的节点,同时尝试获取锁,创建和返回一个如果没有找到。在返回时,保证持有锁。
         * 在大多数方法中,对方法的调用没有经过筛选:因为遍历速度并不重要,所以我们可以帮助对相关的代码和访问进行预热。
         * @return a new node if key not found, else null
         */
        private HashEntry<K,V> scanAndLockForPut(K key, int hash, V value) {
            HashEntry<K,V> first = entryForHash(this, hash);
            HashEntry<K,V> e = first;
            HashEntry<K,V> node = null;
            int retries = -1; // negative while locating node 负而定位节点 (重试次数)
            while (!tryLock()) {
                HashEntry<K,V> f; // to recheck first below
                if (retries < 0) {
                    if (e == null) {
                        if (node == null) // speculatively create node
                            node = new HashEntry<K,V>(hash, key, value, null);
                        retries = 0;
                    }
                    else if (key.equals(e.key))
                        retries = 0;
                    else
                        e = e.next;
                }
                else if (++retries > MAX_SCAN_RETRIES) { // 重试次数大于最大次数,就用lock锁,
                    lock();
                    break;
                }
                else if ((retries & 1) == 0 &&
                         (f = entryForHash(this, hash)) != first) {
                    e = first = f; // re-traverse if entry changed 如果输入更改,则重新遍历
                    retries = -1;
                }
            }
            return node;
        }

    /**
     * Gets the table entry for the given segment and hash
     * 获取给定段和散列的表条目
     */
    @SuppressWarnings("unchecked")
    static final <K,V> HashEntry<K,V> entryForHash(Segment<K,V> seg, int h) {
        HashEntry<K,V>[] tab;
        return (seg == null || (tab = seg.table) == null) ? null :
            (HashEntry<K,V>) UNSAFE.getObjectVolatile
            (tab, ((long)(((tab.length - 1) & h)) << TSHIFT) + TBASE);
    }
 /**
  * Gets the ith element of given table (if nonnull) with volatile
  * read semantics. Note: This is manually integrated into a few
  * performance-sensitive methods to reduce call overhead.
  * 获取给定表的第i个元素(如果是非空),具有volatile读取语义。注意:这是手动集成到一些性能敏感的方法,以减少调用开销。
  */
 @SuppressWarnings("unchecked")
 static final <K,V> HashEntry<K,V> entryAt(HashEntry<K,V>[] tab, int i) {
     return (tab == null) ? null :
         (HashEntry<K,V>) UNSAFE.getObjectVolatile
         (tab, ((long)i << TSHIFT) + TBASE);
 }
    /**
     * Sets the ith element of given table, with volatile write
     * semantics. (See above about use of putOrderedObject.)
     * 设置给定表的第i个元素,使用volatile写语义
     */
    static final <K,V> void setEntryAt(HashEntry<K,V>[] tab, int i,
                                       HashEntry<K,V> e) {
        UNSAFE.putOrderedObject(tab, ((long)i << TSHIFT) + TBASE, e);
    }

(3)rehash扩容

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
    /**
         * Doubles size of table and repacks entries, also adding the
         * given node to new table
         * 加倍table大小并重新装入条目,同时将给定节点添加到新table
         */
        @SuppressWarnings("unchecked")
        private void rehash(HashEntry<K,V> node) {
            /*
             * Reclassify nodes in each list to new table.  Because we
             * are using power-of-two expansion, the elements from
             * each bin must either stay at same index, or move with a
             * power of two offset. We eliminate unnecessary node
             * creation by catching cases where old nodes can be
             * reused because their next fields won't change.
             * Statistically, at the default threshold, only about
             * one-sixth of them need cloning when a table
             * doubles. The nodes they replace will be garbage
             * collectable as soon as they are no longer referenced by
             * any reader thread that may be in the midst of
             * concurrently traversing table. Entry accesses use plain
             * array indexing because they are followed by volatile
             * table write.
             * 将每个列表中的节点重新分类到新表。因为我们使用两次幂展开,所以每个bin的元素必须保持相同的索引,
             * 或者用两个offset的幂移动。我们通过捕获旧节点可以重用的情况来消除不必要的节点创建,
             * 因为它们的下一个字段不会改变。
             * 统计上,在默认阈值下,当表格翻倍时,只有1/6需要克隆。它们替换的节点一旦不再被可能位于同时遍历表中的读取器线程引用,
             * 就会被垃圾收集。条目访问使用普通数组索引,因为它们之后是易失性表写入。
             */
            HashEntry<K,V>[] oldTable = table;
            int oldCapacity = oldTable.length;
            int newCapacity = oldCapacity << 1; //乘以2
            threshold = (int)(newCapacity * loadFactor);
            HashEntry<K,V>[] newTable =
                (HashEntry<K,V>[]) new HashEntry[newCapacity];
            int sizeMask = newCapacity - 1;
            for (int i = 0; i < oldCapacity ; i++) {
                HashEntry<K,V> e = oldTable[i];
                if (e != null) {
                    HashEntry<K,V> next = e.next;
                    int idx = e.hash & sizeMask; // 重新计算下标
                    if (next == null)   //  Single node on list
                        newTable[idx] = e;
                    else { // Reuse consecutive sequence at same slot 重复使用相同位置的连续序列
                        HashEntry<K,V> lastRun = e;
                        int lastIdx = idx;
                        for (HashEntry<K,V> last = next;
                             last != null;
                             last = last.next) {
                            int k = last.hash & sizeMask;
                            if (k != lastIdx) {
                                lastIdx = k;
                                lastRun = last;
                            }
                        }
                        newTable[lastIdx] = lastRun;
                        // Clone remaining nodes 克隆剩余节点
                        for (HashEntry<K,V> p = e; p != lastRun; p = p.next) {
                            V v = p.value;
                            int h = p.hash;
                            int k = h & sizeMask;
                            HashEntry<K,V> n = newTable[k];
                            newTable[k] = new HashEntry<K,V>(h, p.key, v, n);
                        }
                    }
                }
            }
            int nodeIndex = node.hash & sizeMask; // add the new node 添加新节点
            node.setNext(newTable[nodeIndex]);
            newTable[nodeIndex] = node;
            table = newTable;
        }

(4).remove 删除元素

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
       /**
         * Remove; match on key only if value null, else match both.
         * 删除;只有在值为空时才匹配键,否则两者都匹配。
         */
        final V remove(Object key, int hash, Object value) {
            if (!tryLock())
                scanAndLock(key, hash);
            V oldValue = null;
            try {
                HashEntry<K,V>[] tab = table;
                int index = (tab.length - 1) & hash; //获取下标
                HashEntry<K,V> e = entryAt(tab, index); //获取第一个元素
                HashEntry<K,V> pred = null;
                while (e != null) {
                    K k;
                    HashEntry<K,V> next = e.next;
                    if ((k = e.key) == key ||
                        (e.hash == hash && key.equals(k))) {
                        V v = e.value;
                        if (value == null || value == v || value.equals(v)) { //找到删除值
                            if (pred == null)
                                setEntryAt(tab, index, next);
                            else
                                pred.setNext(next);
                            ++modCount;
                            --count;
                            oldValue = v;
                        }
                        break;
                    }
                    pred = e;
                    e = next;
                }
            } finally {
                unlock();
            }
            return oldValue;
        }
       /**
         * Scans for a node containing the given key while trying to
         * acquire lock for a remove or replace operation. Upon
         * return, guarantees that lock is held.  Note that we must
         * lock even if the key is not found, to ensure sequential
         * consistency of updates.
         * 扫描包含给定键的节点,同时尝试获取锁以删除或替换操作。
         * 在返回时,保证持有锁。注意,即使没有找到密钥,我们也必须锁定,以确保更新的顺序一致性。
         */
        private void scanAndLock(Object key, int hash) {
            // similar to but simpler than scanAndLockForPut
            HashEntry<K,V> first = entryForHash(this, hash);
            HashEntry<K,V> e = first;
            int retries = -1;
            while (!tryLock()) {
                HashEntry<K,V> f;
                if (retries < 0) {
                    if (e == null || key.equals(e.key)) //找到key
                        retries = 0;
                    else
                        e = e.next;
                }
                else if (++retries > MAX_SCAN_RETRIES) {
                    lock();
                    break;
                }
                else if ((retries & 1) == 0 &&
                         (f = entryForHash(this, hash)) != first) {
                    e = first = f;
                    retries = -1;
                }
            }
        }

(5).replace 替换元素

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
 final boolean replace(K key, int hash, V oldValue, V newValue) {
            if (!tryLock())
                scanAndLock(key, hash); //获取锁
            boolean replaced = false;
            try {
                HashEntry<K,V> e;
                for (e = entryForHash(this, hash); e != null; e = e.next) {
                    K k;
                    if ((k = e.key) == key ||
                        (e.hash == hash && key.equals(k))) {
                        if (oldValue.equals(e.value)) {
                            e.value = newValue;
                            ++modCount;
                            replaced = true;
                        }
                        break;
                    }
                }
            } finally {
                unlock();
            }
            return replaced;
        }

        final V replace(K key, int hash, V value) {
            if (!tryLock())
                scanAndLock(key, hash);
            V oldValue = null;
            try {
                HashEntry<K,V> e;
                for (e = entryForHash(this, hash); e != null; e = e.next) {
                    K k;
                    if ((k = e.key) == key ||
                        (e.hash == hash && key.equals(k))) {
                        oldValue = e.value;
                        e.value = value;
                        ++modCount;
                        break;
                    }
                }
            } finally {
                unlock();
            }
            return oldValue;
        }

3.ConcurrentMap内部实现

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
public class ConcurrentHashMap<K, V> extends AbstractMap<K, V>
        implements ConcurrentMap<K, V>, Serializable {
    private static final long serialVersionUID = 7249069246763182397L;
  /**
     * The default initial capacity for this table,
     * used when not otherwise specified in a constructor.
     * 此表的默认初始容量,在构造函数中未指定的情况下使用。
     */
    static final int DEFAULT_INITIAL_CAPACITY = 16;

    /**
     * The default load factor for this table, used when not
     * otherwise specified in a constructor.
     * 此表的默认加载因子,在构造函数中未指定的情况下使用。
     */
    static final float DEFAULT_LOAD_FACTOR = 0.75f;

    /**
     * The default concurrency level for this table, used when not
     * otherwise specified in a constructor.
     * 此表的默认并发级别,在构造函数中未指定的情况下使用
     */
    static final int DEFAULT_CONCURRENCY_LEVEL = 16;

    /**
     * The maximum capacity, used if a higher value is implicitly
     * specified by either of the constructors with arguments.  MUST
     * be a power of two <= 1<<30 to ensure that entries are indexable
     * using ints.
     * 最大容量,如果一个较高的值由带有参数的构造函数隐式指定。必须是两个< = 1<< 30的幂,以确保使用ints可索引项。
     */
    static final int MAXIMUM_CAPACITY = 1 << 30;

    /**
     * The minimum capacity for per-segment tables.  Must be a power
     * of two, at least two to avoid immediate resizing on next use
     * after lazy construction.
     * 每段表的最小容量。
     */
    static final int MIN_SEGMENT_TABLE_CAPACITY = 2;

    /**
     * The maximum number of segments to allow; used to bound
     * constructor arguments. Must be power of two less than 1 << 24.
     * 允许的最大段数;用于绑定构造函数参数。必须是2小于1 < 24的幂。
     */
    static final int MAX_SEGMENTS = 1 << 16; // slightly conservative

    /**
     * Number of unsynchronized retries in size and containsValue
     * methods before resorting to locking. This is used to avoid
     * unbounded retries if tables undergo continuous modification
     * which would make it impossible to obtain an accurate result.
     * 在使用锁之前,不同步重试的数量和包含值方法的数量。如果表经过不断的修改,使其不可能获得准确的结果,则使用此方法来避免无界重试。
     */
    static final int RETRIES_BEFORE_LOCK = 2;

    /* ---------------- Fields -------------- */

    /**
     * holds values which can't be initialized until after VM is booted.
     * 持有可以在VM启动后才初始化的值。
     */
    private static class Holder {

        /**
        * Enable alternative hashing of String keys?
        *  启用字符串键的替代哈希?
        *
        * <p>Unlike the other hash map implementations we do not implement a
        * threshold for regulating whether alternative hashing is used for
        * String keys. Alternative hashing is either enabled for all instances
        * or disabled for all instances.
        * 与其他散列映射的实现不同,我们没有实现一个阈值来规范字符串键是否使用替代哈希。可以为所有实例启用替代哈希,也可以为所有实例禁用。
        */
        static final boolean ALTERNATIVE_HASHING;

        static {
            // Use the "threshold" system property even though our threshold
            // behaviour is "ON" or "OFF".
            String altThreshold = java.security.AccessController.doPrivileged(
                new sun.security.action.GetPropertyAction(
                    "jdk.map.althashing.threshold"));

            int threshold;
            try {
                threshold = (null != altThreshold)
                        ? Integer.parseInt(altThreshold)
                        : Integer.MAX_VALUE;

                // disable alternative hashing if -1
                if (threshold == -1) {
                    threshold = Integer.MAX_VALUE;
                }

                if (threshold < 0) {
                    throw new IllegalArgumentException("value must be positive integer.");
                }
            } catch(IllegalArgumentException failed) {
                throw new Error("Illegal value for 'jdk.map.althashing.threshold'", failed);
            }
            ALTERNATIVE_HASHING = threshold <= MAXIMUM_CAPACITY;
        }
    }

    /**
     * A randomizing value associated with this instance that is applied to
     * hash code of keys to make hash collisions harder to find.
     * 与此实例相关联的随机值,用于哈希键的散列代码,使散列冲突更难找到
     */
    private transient final int hashSeed = randomHashSeed(this);

    private static int randomHashSeed(ConcurrentHashMap instance) {
        if (sun.misc.VM.isBooted() && Holder.ALTERNATIVE_HASHING) {
            return sun.misc.Hashing.randomHashSeed(instance);
        }

        return 0;
    }

    /**
     * Mask value for indexing into segments. The upper bits of a
     * key's hash code are used to choose the segment.
     * 计算segment下标的掩码。一个key的hash code高位(由segmentShift确定)用来确定segment下标。
     */
    final int segmentMask;

    /**
     * Shift value for indexing within segments.
     * segment下标的位移值。
     */
    final int segmentShift;

    /**
     * The segments, each of which is a specialized hash table.
     * 分段数组
     */
    final Segment<K,V>[] segments;

    transient Set<K> keySet;
    transient Set<Map.Entry<K,V>> entrySet;
    transient Collection<V> values;

 /**
     * Creates a new, empty map with the specified initial
     * capacity, load factor and concurrency level.
     * 创建具有指定初始容量、负载因素和并发级别的新的空映射。
     * @param initialCapacity the initial capacity. The implementation
     * performs internal sizing to accommodate this many elements.
     * @param loadFactor  the load factor threshold, used to control resizing.
     * Resizing may be performed when the average number of elements per
     * bin exceeds this threshold.
     * @param concurrencyLevel the estimated number of concurrently
     * updating threads. The implementation performs internal sizing
     * to try to accommodate this many threads.
     * @throws IllegalArgumentException if the initial capacity is
     * negative or the load factor or concurrencyLevel are
     * nonpositive.
     */
    @SuppressWarnings("unchecked")
    public ConcurrentHashMap(int initialCapacity,
                             float loadFactor, int concurrencyLevel) {
        if (!(loadFactor > 0) || initialCapacity < 0 || concurrencyLevel <= 0)
            throw new IllegalArgumentException();
        if (concurrencyLevel > MAX_SEGMENTS)
            concurrencyLevel = MAX_SEGMENTS;
        // Find power-of-two sizes best matching arguments
        int sshift = 0;
        int ssize = 1;
        while (ssize < concurrencyLevel) { //计算出2次方大小
            ++sshift;
            ssize <<= 1;
        }
        /**
         * 假设传入的concurrencyLevel是50,
         * 那么ssize就是64,sshift就是6,segmentMask就是 00000000 00000000 00000000 00111111
         *  segmentShift=32-6=26
         *  计算下标:(hash >>> segmentShift) & segmentMask; hash>>>segmentShift=得到6位值& segmentMask=下标值
         *
         */

        this.segmentShift = 32 - sshift;
        this.segmentMask = ssize - 1;
        if (initialCapacity > MAXIMUM_CAPACITY)
            initialCapacity = MAXIMUM_CAPACITY;
        int c = initialCapacity / ssize;
        if (c * ssize < initialCapacity)
            ++c;
        int cap = MIN_SEGMENT_TABLE_CAPACITY;
        while (cap < c)
            cap <<= 1;
        // create segments and segments[0]
        Segment<K,V> s0 =
            new Segment<K,V>(loadFactor, (int)(cap * loadFactor),
                             (HashEntry<K,V>[])new HashEntry[cap]);
        Segment<K,V>[] ss = (Segment<K,V>[])new Segment[ssize];
        UNSAFE.putOrderedObject(ss, SBASE, s0); // ordered write of segments[0]
        this.segments = ss;
    }

    /**
     * Creates a new, empty map with the specified initial capacity
     * and load factor and with the default concurrencyLevel (16).
     *
     * @param initialCapacity The implementation performs internal
     * sizing to accommodate this many elements.
     * @param loadFactor  the load factor threshold, used to control resizing.
     * Resizing may be performed when the average number of elements per
     * bin exceeds this threshold.
     * @throws IllegalArgumentException if the initial capacity of
     * elements is negative or the load factor is nonpositive
     *
     * @since 1.6
     */
    public ConcurrentHashMap(int initialCapacity, float loadFactor) {
        this(initialCapacity, loadFactor, DEFAULT_CONCURRENCY_LEVEL);
    }

    /**
     * Creates a new, empty map with the specified initial capacity,
     * and with default load factor (0.75) and concurrencyLevel (16).
     *
     * @param initialCapacity the initial capacity. The implementation
     * performs internal sizing to accommodate this many elements.
     * @throws IllegalArgumentException if the initial capacity of
     * elements is negative.
     */
    public ConcurrentHashMap(int initialCapacity) {
        this(initialCapacity, DEFAULT_LOAD_FACTOR, DEFAULT_CONCURRENCY_LEVEL);
    }

    /**
     * Creates a new, empty map with a default initial capacity (16),
     * load factor (0.75) and concurrencyLevel (16).
     */
    public ConcurrentHashMap() {
        this(DEFAULT_INITIAL_CAPACITY, DEFAULT_LOAD_FACTOR, DEFAULT_CONCURRENCY_LEVEL);
    }

    /**
     * Creates a new map with the same mappings as the given map.
     * The map is created with a capacity of 1.5 times the number
     * of mappings in the given map or 16 (whichever is greater),
     * and a default load factor (0.75) and concurrencyLevel (16).
     *
     * @param m the map
     */
    public ConcurrentHashMap(Map<? extends K, ? extends V> m) {
        this(Math.max((int) (m.size() / DEFAULT_LOAD_FACTOR) + 1,
                      DEFAULT_INITIAL_CAPACITY),
             DEFAULT_LOAD_FACTOR, DEFAULT_CONCURRENCY_LEVEL);
        putAll(m);
    }


  /**
   * Get the segment for the given hash
   */
  @SuppressWarnings("unchecked")
  private Segment<K,V> segmentForHash(int h) {
      long u = (((h >>> segmentShift) & segmentMask) << SSHIFT) + SBASE;
      return (Segment<K,V>) UNSAFE.getObjectVolatile(segments, u);
  }
  // Unsafe mechanics
    private static final sun.misc.Unsafe UNSAFE;
    private static final long SBASE;
    private static final int SSHIFT;
    private static final long TBASE;
    private static final int TSHIFT;
    private static final long HASHSEED_OFFSET;
    private static final long SEGSHIFT_OFFSET;
    private static final long SEGMASK_OFFSET;
    private static final long SEGMENTS_OFFSET;

    static {
        int ss, ts;
        try {
            UNSAFE = sun.misc.Unsafe.getUnsafe();
            Class tc = HashEntry[].class;
            Class sc = Segment[].class;
            TBASE = UNSAFE.arrayBaseOffset(tc);
            SBASE = UNSAFE.arrayBaseOffset(sc);
            ts = UNSAFE.arrayIndexScale(tc);
            ss = UNSAFE.arrayIndexScale(sc);
            HASHSEED_OFFSET = UNSAFE.objectFieldOffset(
                ConcurrentHashMap.class.getDeclaredField("hashSeed"));
            SEGSHIFT_OFFSET = UNSAFE.objectFieldOffset(
                ConcurrentHashMap.class.getDeclaredField("segmentShift"));
            SEGMASK_OFFSET = UNSAFE.objectFieldOffset(
                ConcurrentHashMap.class.getDeclaredField("segmentMask"));
            SEGMENTS_OFFSET = UNSAFE.objectFieldOffset(
                ConcurrentHashMap.class.getDeclaredField("segments"));
        } catch (Exception e) {
            throw new Error(e);
        }
        if ((ss & (ss-1)) != 0 || (ts & (ts-1)) != 0)
            throw new Error("data type scale not a power of two");
        SSHIFT = 31 - Integer.numberOfLeadingZeros(ss); //numberOfLeadingZeros 给定一个int类型数据,返回这个数据的二进制串中从最左边算起连续的"0"的总数量。因为int类型的数据长度为32所以高位不足的地方会以"0"填充。
        TSHIFT = 31 - Integer.numberOfLeadingZeros(ts);
    }
}

二、put添加元素

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
 /**
     * Maps the specified key to the specified value in this table.
     * Neither the key nor the value can be null.
     * 将指定键映射到该表中的指定值。键和值都不能为空。
     * <p> The value can be retrieved by calling the <tt>get</tt> method
     * with a key that is equal to the original key.
     *
     * @param key key with which the specified value is to be associated
     * @param value value to be associated with the specified key
     * @return the previous value associated with <tt>key</tt>, or
     *         <tt>null</tt> if there was no mapping for <tt>key</tt>
     * @throws NullPointerException if the specified key or value is null
     */
    @SuppressWarnings("unchecked")
    public V put(K key, V value) {
        Segment<K,V> s;
        if (value == null)
            throw new NullPointerException();
        int hash = hash(key);
        int j = (hash >>> segmentShift) & segmentMask; //获取下标值
        if ((s = (Segment<K,V>)UNSAFE.getObject          // nonvolatile; recheck
             (segments, (j << SSHIFT) + SBASE)) == null) //  in ensureSegment
            s = ensureSegment(j);
        return s.put(key, hash, value, false); //Segment.put 添加值
    }
   /**
     * Applies a supplemental hash function to a given hashCode, which
     * defends against poor quality hash functions.  This is critical
     * because ConcurrentHashMap uses power-of-two length hash tables,
     * that otherwise encounter collisions for hashCodes that do not
     * differ in lower or upper bits.
     * 将补充散列函数应用于给定的散列码,该散列码防御质量差的散列函数。
     * 这一点很重要,因为ConcurrentHashMap使用2次方长度的哈希表,否则会碰到hashCode的冲突,这些hashCodes在低位或高位没有区别。
     * 使用 Wang/Jenkins hash  https://en.wikipedia.org/wiki/Jenkins_hash_function http://www.voidcn.com/article/p-gxgbcdhb-bcx.html
     */
    private int hash(Object k) {
        int h = hashSeed;

        if ((0 != h) && (k instanceof String)) {
            return sun.misc.Hashing.stringHash32((String) k);
        }

        h ^= k.hashCode();

        // Spread bits to regularize both segment and index locations,
        // using variant of single-word Wang/Jenkins hash.
        h += (h <<  15) ^ 0xffffcd7d;
        h ^= (h >>> 10);
        h += (h <<   3);
        h ^= (h >>>  6);
        h += (h <<   2) + (h << 14);
        return h ^ (h >>> 16);
    }
 /**
     * Returns the segment for the given index, creating it and
     * recording in segment table (via CAS) if not already present.
     *
     * @param k the index
     * @return the segment
     */
    @SuppressWarnings("unchecked")
    private Segment<K,V> ensureSegment(int k) {
        final Segment<K,V>[] ss = this.segments;
        long u = (k << SSHIFT) + SBASE; // raw offset 数组下标偏移量
        Segment<K,V> seg;
        if ((seg = (Segment<K,V>)UNSAFE.getObjectVolatile(ss, u)) == null) { //
            Segment<K,V> proto = ss[0]; // use segment 0 as prototype
            int cap = proto.table.length;
            float lf = proto.loadFactor;
            int threshold = (int)(cap * lf);
            HashEntry<K,V>[] tab = (HashEntry<K,V>[])new HashEntry[cap];
            if ((seg = (Segment<K,V>)UNSAFE.getObjectVolatile(ss, u))
                == null) { // recheck
                Segment<K,V> s = new Segment<K,V>(lf, threshold, tab);
                while ((seg = (Segment<K,V>)UNSAFE.getObjectVolatile(ss, u))
                       == null) {
                    if (UNSAFE.compareAndSwapObject(ss, u, null, seg = s)) //CAS 修改值
                        break;
                }
            }
        }
        return seg;
    }
    /**
     * {@inheritDoc}
     *
     * @return the previous value associated with the specified key,
     *         or <tt>null</tt> if there was no mapping for the key
     * @throws NullPointerException if the specified key or value is null
     */
    @SuppressWarnings("unchecked")
    public V putIfAbsent(K key, V value) {
        Segment<K,V> s;
        if (value == null)
            throw new NullPointerException();
        int hash = hash(key);
        int j = (hash >>> segmentShift) & segmentMask;
        if ((s = (Segment<K,V>)UNSAFE.getObject
             (segments, (j << SSHIFT) + SBASE)) == null)
            s = ensureSegment(j);
        return s.put(key, hash, value, true);
    }

    /**
     * Copies all of the mappings from the specified map to this one.
     * These mappings replace any mappings that this map had for any of the
     * keys currently in the specified map.
     *
     * @param m mappings to be stored in this map
     */
    public void putAll(Map<? extends K, ? extends V> m) {
        for (Map.Entry<? extends K, ? extends V> e : m.entrySet())
            put(e.getKey(), e.getValue());
    }

三、get 获取值

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
    /**
     * Returns the value to which the specified key is mapped,
     * or {@code null} if this map contains no mapping for the key.
     * 返回指定键映射的值,或者如果该映射不包含键的映射,则返回{@ code null}。
     * <p>More formally, if this map contains a mapping from a key
     * {@code k} to a value {@code v} such that {@code key.equals(k)},
     * then this method returns {@code v}; otherwise it returns
     * {@code null}.  (There can be at most one such mapping.)
     *
     * @throws NullPointerException if the specified key is null
     */
    public V get(Object key) {
        Segment<K,V> s; // manually integrate access methods to reduce overhead
        HashEntry<K,V>[] tab;
        int h = hash(key);
        long u = (((h >>> segmentShift) & segmentMask) << SSHIFT) + SBASE; //获取数组下标偏移量
        if ((s = (Segment<K,V>)UNSAFE.getObjectVolatile(segments, u)) != null && //getObjectVolatile volatile特性获取值
            (tab = s.table) != null) {
            for (HashEntry<K,V> e = (HashEntry<K,V>) UNSAFE.getObjectVolatile
                     (tab, ((long)(((tab.length - 1) & h)) << TSHIFT) + TBASE);
                 e != null; e = e.next) {
                K k;
                if ((k = e.key) == key || (e.hash == h && key.equals(k)))
                    return e.value;
            }
        }
        return null;
    }

三、remove 删除

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
    /**
     * Removes the key (and its corresponding value) from this map.
     * This method does nothing if the key is not in the map.
     *
     * @param  key the key that needs to be removed
     * @return the previous value associated with <tt>key</tt>, or
     *         <tt>null</tt> if there was no mapping for <tt>key</tt>
     * @throws NullPointerException if the specified key is null
     */
    public V remove(Object key) {
        int hash = hash(key);
        Segment<K,V> s = segmentForHash(hash);
        return s == null ? null : s.remove(key, hash, null);
    }

    /**
     * {@inheritDoc}
     *
     * @throws NullPointerException if the specified key is null
     */
    public boolean remove(Object key, Object value) {
        int hash = hash(key);
        Segment<K,V> s;
        return value != null && (s = segmentForHash(hash)) != null &&
            s.remove(key, hash, value) != null;
    }

四、replace 替换

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
 /**
     * {@inheritDoc}
     *
     * @throws NullPointerException if any of the arguments are null
     */
    public boolean replace(K key, V oldValue, V newValue) {
        int hash = hash(key);
        if (oldValue == null || newValue == null)
            throw new NullPointerException();
        Segment<K,V> s = segmentForHash(hash);
        return s != null && s.replace(key, hash, oldValue, newValue);
    }

    /**
     * {@inheritDoc}
     *
     * @return the previous value associated with the specified key,
     *         or <tt>null</tt> if there was no mapping for the key
     * @throws NullPointerException if the specified key or value is null
     */
    public V replace(K key, V value) {
        int hash = hash(key);
        if (value == null)
            throw new NullPointerException();
        Segment<K,V> s = segmentForHash(hash);
        return s == null ? null : s.replace(key, hash, value);
    }

五、 size

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
    /**
     * Returns the number of key-value mappings in this map.  If the
     * map contains more than <tt>Integer.MAX_VALUE</tt> elements, returns
     * <tt>Integer.MAX_VALUE</tt>.
     *
     * @return the number of key-value mappings in this map
     */
    public int size() {
        // Try a few times to get accurate count. On failure due to
        // continuous async changes in table, resort to locking.
        final Segment<K,V>[] segments = this.segments;
        int size;
        boolean overflow; // true if size overflows 32 bits
        long sum;         // sum of modCounts
        long last = 0L;   // previous sum
        int retries = -1; // first iteration isn't retry
        try {
            for (;;) {
                if (retries++ == RETRIES_BEFORE_LOCK) { //先循环2次,统计modCount不一致,在加锁循环
                    for (int j = 0; j < segments.length; ++j)
                        ensureSegment(j).lock(); // force creation
                }
                sum = 0L;
                size = 0;
                overflow = false;
                for (int j = 0; j < segments.length; ++j) {
                    Segment<K,V> seg = segmentAt(segments, j);
                    if (seg != null) {
                        sum += seg.modCount;
                        int c = seg.count;
                        if (c < 0 || (size += c) < 0)
                            overflow = true;
                    }
                }
                if (sum == last)
                    break;
                last = sum;
            }
        } finally {
            if (retries > RETRIES_BEFORE_LOCK) {
                for (int j = 0; j < segments.length; ++j)
                    segmentAt(segments, j).unlock();
            }
        }
        return overflow ? Integer.MAX_VALUE : size;
    }

六、containsValue

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
  /**
     * Returns <tt>true</tt> if this map maps one or more keys to the
     * specified value. Note: This method requires a full internal
     * traversal of the hash table, and so is much slower than
     * method <tt>containsKey</tt>.
     *
     * @param value value whose presence in this map is to be tested
     * @return <tt>true</tt> if this map maps one or more keys to the
     *         specified value
     * @throws NullPointerException if the specified value is null
     */
    public boolean containsValue(Object value) {
        // Same idea as size() 相同的想法size()
        if (value == null)
            throw new NullPointerException();
        final Segment<K,V>[] segments = this.segments;
        boolean found = false;
        long last = 0;
        int retries = -1;
        try {
            outer: for (;;) {
                if (retries++ == RETRIES_BEFORE_LOCK) { // 未查询到,先循环2次,在加锁
                    for (int j = 0; j < segments.length; ++j)
                        ensureSegment(j).lock(); // force creation
                }
                long hashSum = 0L;
                int sum = 0;
                for (int j = 0; j < segments.length; ++j) {
                    HashEntry<K,V>[] tab;
                    Segment<K,V> seg = segmentAt(segments, j);
                    if (seg != null && (tab = seg.table) != null) {
                        for (int i = 0 ; i < tab.length; i++) {
                            HashEntry<K,V> e;
                            for (e = entryAt(tab, i); e != null; e = e.next) {
                                V v = e.value;
                                if (v != null && value.equals(v)) {
                                    found = true;
                                    break outer;
                                }
                            }
                        }
                        sum += seg.modCount;
                    }
                }
                if (retries > 0 && sum == last) //退出循环
                    break;
                last = sum;
            }
        } finally {
            if (retries > RETRIES_BEFORE_LOCK) {
                for (int j = 0; j < segments.length; ++j)
                    segmentAt(segments, j).unlock();
            }
        }
        return found;
    }

七、Iterator 迭代器实现

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
    abstract class HashIterator {
        int nextSegmentIndex;
        int nextTableIndex;
        HashEntry<K,V>[] currentTable;
        HashEntry<K, V> nextEntry;
        HashEntry<K, V> lastReturned;

        HashIterator() {
            nextSegmentIndex = segments.length - 1;
            nextTableIndex = -1;
            advance();
        }

        /**
         * Set nextEntry to first node of next non-empty table
         * (in backwards order, to simplify checks).
         *  方法迭代Segment数组
         */
        final void advance() {
            for (;;) {
                if (nextTableIndex >= 0) {
                    if ((nextEntry = entryAt(currentTable,
                                             nextTableIndex--)) != null)
                        break;
                }
                else if (nextSegmentIndex >= 0) {
                    Segment<K,V> seg = segmentAt(segments, nextSegmentIndex--);
                    if (seg != null && (currentTable = seg.table) != null)
                        nextTableIndex = currentTable.length - 1;
                }
                else
                    break;
            }
        }
        // 方法迭代Segment中HashEntry数组
        final HashEntry<K,V> nextEntry() {
            HashEntry<K,V> e = nextEntry;
            if (e == null)
                throw new NoSuchElementException();
            lastReturned = e; // cannot assign until after null check
            if ((nextEntry = e.next) == null)
                advance();
            return e;
        }

        public final boolean hasNext() { return nextEntry != null; }
        public final boolean hasMoreElements() { return nextEntry != null; }

        public final void remove() {
            if (lastReturned == null)
                throw new IllegalStateException();
            ConcurrentHashMap.this.remove(lastReturned.key);
            lastReturned = null;
        }
    }
    // key 迭代
    final class KeyIterator
        extends HashIterator
        implements Iterator<K>, Enumeration<K>
    {
        public final K next()        { return super.nextEntry().key; }
        public final K nextElement() { return super.nextEntry().key; }
    }
   // value 迭代
    final class ValueIterator
        extends HashIterator
        implements Iterator<V>, Enumeration<V>
    {
        public final V next()        { return super.nextEntry().value; }
        public final V nextElement() { return super.nextEntry().value; }
    }
